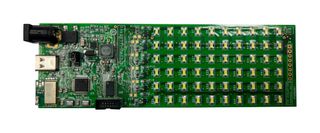

STEVAL-LLL005V1
Evaluation Board, STP16CPC26 16-Bit LED Sink Driver, 6 x 10 LED Matrix Display, Bluetooth
Pilt on illustreeriv. Lugege toote kirjeldust.
4 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 45,340 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
45,34 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaSTMICROELECTRONICS
Tootja toote nrSTEVAL-LLL005V1
Tellimiskood2980989
Tehniliste andmete leht
Device TopologyConstant Current
Silicon Core Number-
No. of Outputs-
Output Current-
Output Voltage-
Input Voltage Min-
Input Voltage Max-
Core ChipSTP16CPC26
Dimming Control Type-
Kit ContentsEvaluation Board STP16CPC26
Product Range-
SVHCNo SVHC (21-Jan-2025)
Toote ülevaade
LED driver evaluation board ensures a cost effective 6 x 10 LED matrix with individual LED control. The STP16CPC26 low voltage 16bit constant current LED sink driver on the STEVAL-LLL005V1 evaluation board. This board includes a jumper to select between powering the board through a standard DC jack input or a USB Type-C connector as well as two control switches.
- Cost effective 16bit LED driving scheme
- Driver for 6x10 LED matrix with individual LED control and row-wise scanning
- Bluetooth Smart connectivity and Android application for hassle free demonstration
- Connector for stacking multiple LED drivers in daisy chain configuration
- Preconfigured demos (selected through on-board switches (with brightness /speed/blink rate control)
Märkused
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Tehnilised andmed
Device Topology
Constant Current
No. of Outputs
-
Output Voltage
-
Input Voltage Max
-
Dimming Control Type
-
Product Range
-
Silicon Core Number
-
Output Current
-
Input Voltage Min
-
Core Chip
STP16CPC26
Kit Contents
Evaluation Board STP16CPC26
SVHC
No SVHC (21-Jan-2025)
Tehnilised dokumendid (2)
Seotud tooted
Leiti 6 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Italy
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Italy
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (21-Jan-2025)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.027
