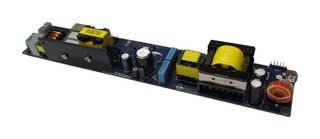

STEVAL-ILL066V2
Evaluation Board, STLUX385A Digital Lighting Controller, LED Street Lighting, 100W
Pilt on illustreeriv. Lugege toote kirjeldust.
2 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 121,140 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
121,14 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaSTMICROELECTRONICS
Tootja toote nrSTEVAL-ILL066V2
Tellimiskood2980997
Tehniliste andmete leht
Device Topology-
No. of Outputs1Outputs
Output Current1A
Output Voltage100V
Input Voltage Min90VAC
Input Voltage Max265VAC
Core ChipSTLUX385A
Dimming Control TypeI2C, PWM
Kit ContentsEvaluation Board STLUX385A
Product Range-
SVHCNo SVHC (21-Jan-2025)
Toote ülevaade
100W LED street lighting evaluation board using the STLUX385A digital controller. This evaluation board is a complete and configurable solution that efficiently controls a single, dimmable, high-brightness LED string using the STLUX385A digital controller. It provides DALI, insulated 0-10 and UART physical communication interfaces with all communication managed by the STLUX385A device.
- Primary side controlled
- Single isolated output suitable for LED connection
- 90V to 265VAC wide input voltage range
- Adjustable LED current and dimming
- 92% high efficiency
- Up to 100W (100V at 1A or 200V at 0.5A)
- 11bit equivalent output resolution
- Real-time fault detection and protection (short-circuit or open circuit)
- remote control via DALI ed.2.0, 0 to 10 V and UART
Märkused
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Tehnilised andmed
Device Topology
-
Output Current
1A
Input Voltage Min
90VAC
Core Chip
STLUX385A
Kit Contents
Evaluation Board STLUX385A
SVHC
No SVHC (21-Jan-2025)
No. of Outputs
1Outputs
Output Voltage
100V
Input Voltage Max
265VAC
Dimming Control Type
I2C, PWM
Product Range
-
