EVALSTPM32

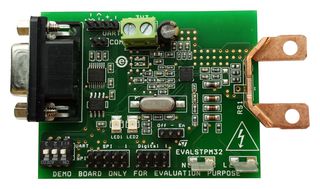

Single-phase energy metering evaluation board with shunt current sensor based on the STPM32. It is a class 0.2, single-phase meter with shunt current sensor for power line systems with Vnom = 140 to 300V(RMS), Inom / Imax = 5/100A(RMS), flin = 50/60Hz ± 10% and Tamb = -40 to +85°C. Measured active/reactive power can be output from two programmable LEDs on the board. The board can be interfaced with a PC running evaluation software through an isolated RS232 port, or through the STEVAL-IPE023V1 USB isolated interface tool for configuration and data reading. The board also has SPI/UART pins available to interface a microcontroller for application development.

• 0.2% accuracy single-phase meter
• Connector for USB isolated hardware programmer tool STEVAL-IPE023V1 and PC GUI
• RS232 and UART isolated connectors to PC GUI
• SPI/UART switch for device peripheral selection
• Digital expansion to external system-on-chip or MCU
• 3.3 V power supply, external or through STEVAL-IPE023V1 isolated USB board
• IEC61000 standard compliant
