MP012461

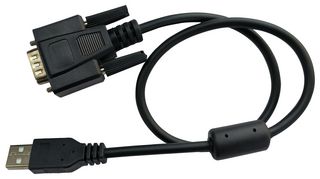

The cable assembly is designed to facilitate connectivity between USB 2.0 and a DB9P (9-pin D-Sub) interface, featuring a length of 1 meter for convenient use. Notably, it incorporates an on-chip system that includes a USB 1.1 transceiver, a 5V to 3.3V regulator for voltage compatibility, and a precision 12MHz crystal oscillator to ensure stable and accurate signal timing. This assembly provides a reliable and efficient solution for data transfer between USB 2.0-enabled devices and equipment equipped with a DB9P interface, offering seamless connectivity over short distances.

• Fully complies with USB specification 2.0 (full speed compatible)
• On-chip has USB 1.1 transceiver, 5V to 3.3V regulator, 12Mhz crystal oscillator
• Support serial interface like RS232
• Wide flow control mechanism
• Configurable 512-byte bidirectional data buffer
• Support wake-up function from remote input related modulation signal
• Two general-purpose I/O (GPIO) pins
• Configuration can be stored in external EEPROM at startup
• Provide drivers supporting Windows and Mac OS Linux and WinCE

Rakendused

Data / Computing, Computer Peripherals, Communications & Networking
