ME817EV
Evaluation Board, BT817, Embedded Video Engine (EVE)

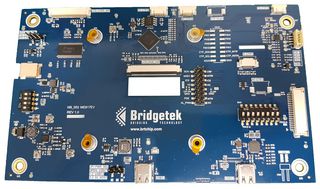

Pilt on illustreeriv. Lugege toote kirjeldust.
2 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 115,510 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
115,51 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaBRIDGETEK
Tootja toote nrME817EV
Tellimiskood3619726
Tehniliste andmete leht
Silicon ManufacturerBridgetek
Silicon Core NumberBT817
Kit Application TypeEmbedded
Application Sub TypeEmbedded Video Engine (EVE)
Kit ContentsEval Board BT817
Product Range-
SVHCNo SVHC (16-Jan-2020)
Toote ülevaade
ME817EV is a customer evaluation board for Bridgetek 4th generation EVE chip, BT817. The ME817EV is used to develop and demonstrate BT817's graphics, touch and audio functionalities. The board is capable of supporting LCD panels with 40-pin LVDS interface, or 50-pin RGB interface. Backlight LED current can be adjusted using dip switches. Capacitive touch screens can be connected to the board through a 10-pin or 6-pin FPC connector. An Audio filter and amplifier are included on-board, allowing a 1/8W speaker to be driven. Audio source can be supplied from the BT817, or through a line-in connector.
- Supports 40-pin LVDS display up to 1280x800
- Supports 50-pin RGB display up to 1024x600
- Trimmable on board LCD biasing voltages
- On board LCD backlight LED driver
- On board audio power amplifier and audio connector for external speaker support
- On board 16Mbyte NOR flash memory
- Supports SPI host interface through 2x8 pin header or 20pin FPC connector
- Supports USB high-speed connection with FT4222H
- 5V power supply via SPI host connector or via USB Type-C port
Tehnilised andmed
Silicon Manufacturer
Bridgetek
Kit Application Type
Embedded
Kit Contents
Eval Board BT817
SVHC
No SVHC (16-Jan-2020)
Silicon Core Number
BT817
Application Sub Type
Embedded Video Engine (EVE)
Product Range
-
Tehnilised dokumendid (1)
Alternatiivid tootele ME817EV
Leiti 2 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Taiwan
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Taiwan
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Vajab kinnitamist
Väga ohtlik aine:No SVHC (16-Jan-2020)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.033
