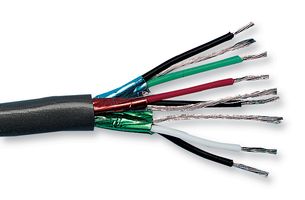

Multipair Cable, Per M, Screened, 6 Pair, 22 AWG, 0.325 mm²
Pilt on illustreeriv. Lugege toote kirjeldust.
Saadaval tellimiseks
Tootja standardne tarneaeg: 11 nädal(at)
Teavitage mind, kui toode on uuesti laos
| Kogus | |
|---|---|
| 1+ | 12,330 € |
| 10+ | 11,910 € |
| 25+ | 11,500 € |
| 50+ | 10,680 € |
Hind:1 Metre
Minimaalne: 1
Mitmekordne: 1
12,33 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaBELDEN
Tootja toote nr8778
Tellimiskood1218685
Tehniliste andmete leht
Cable ShieldingScreened
No. of Pairs6 Pair
Wire Gauge22AWG
Conductor Area CSA0.325mm²
Reel Length (Imperial)-
Reel Length (Metric)-
Jacket ColourChrome
No. of Max Strands x Strand Size7 x 0.255mm
Voltage Rating30Vrms
Jacket MaterialPVC
Conductor MaterialTinned Copper
External Diameter9.2mm
Product Range-
SVHCNo SVHC (10-Jun-2022)
Toote ülevaade
The 8778 is a 6-pair CM-rated Multi-conductor Cable with 22AWG stranded (7x30) tinned copper conductor, polypropylene insulation, twisted pairs individually shielded with Beldfoil® aluminium foil-polyester tape (100% coverage) and overall chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- CPR: Not Yet Qualified
- 50Ω Nominal characteristic impedance
- 0.18μH/ft Nominal inductance
- 30pF/ft Conductor to shield nominal capacitance
- 55pF/ft Conductor to other conductor and shield nominal capacitance
- 66% Nominal velocity of propagation
- 15Ω/1000ft at 20°C Nominal conductor DC resistance
- UL1685 Flame tested
Rakendused
Industrial
Tehnilised andmed
Cable Shielding
Screened
Wire Gauge
22AWG
Reel Length (Imperial)
-
Jacket Colour
Chrome
Voltage Rating
30Vrms
Conductor Material
Tinned Copper
Product Range
-
No. of Pairs
6 Pair
Conductor Area CSA
0.325mm²
Reel Length (Metric)
-
No. of Max Strands x Strand Size
7 x 0.255mm
Jacket Material
PVC
External Diameter
9.2mm
SVHC
No SVHC (10-Jun-2022)
Tehnilised dokumendid (1)
Alternatiivid tootele 8778
Leiti 1 toodet
Seotud tooted
Leiti 6 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Great Britain
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Great Britain
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85444995
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (10-Jun-2022)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.124
