DEL-6717 BR001

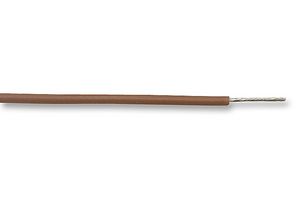

The 6717 series EcoWire from Alpha Wire are hook up wires used for electrical connections. EcoWire is the latest innovation in hook up wire featuring flexible Noryl insulation to provide an environment friendly alternative to PVC. Noryl is a modified polyphenylene ether thermoplastic that is inherently lighter, tougher and more flame resistance than PVC. The superior dielectric property of mPPE reduces wall thickness and maintains the same electrical properties as PVC. EcoWire’s diameter is up to 45% smaller in size than equivalent wire and can be recycled easily.

• CPR: Not Yet Qualified
• Conductor size of 14AWG and 41/30AWG strand size
• Stranded or solid tinned copper conductor
• Voltage rating of 600V
• Available in 100ft, 1000ft, 5000ft and 25,000ft cable length
• CSA AWM I A/B FT1, UL AWM 11028, UL VW-1 and CE certified
• Operating temperature range -40°C to +105°C
• Available in variety of jacket colours
• Insulation thickness of 0.011inch
• Non halogenated with no heavy metal pigments

Rakendused

Industrial, Power Management
