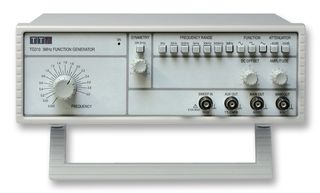

TG310

The TG310 is a basic 3MHz function generator which offers very high waveform quality at all frequencies and levels. Frequency is set using a calibrated venire knob. The feature set includes variable symmetry and variable dc offset with centre detent. Output impedances of 50Ω and 600Ω are supported via separate output sockets.

• 0.003Hz to 3MHz frequency range
• High waveform quality at all frequencies & levels
• 20mV to 20V pk-pk from 50Ω or 600Ω
• Auxiliary TTL/CMOS output
• Variable symmetry with constant frequency
• Variable DC offset with zero detent
• 1000:1 frequency change by vernier or sweep voltage

Rakendused

Sensing & Instrumentation, Signal Processing, Test & Measurement
