VER36US120-JA
AC/DC Power Supply, ITE, 1 Output, 36 W, 12 VDC, 3 A
Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaXP POWER
Tootja toote nrVER36US120-JA
Tellimiskood2646341
TootevalikVER36 Series
Tehniliste andmete leht
474 Laos
575 Varusid saab nüüd reserveerida
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 21,580 € |
| 5+ | 20,930 € |
| 10+ | 20,280 € |
| 50+ | 19,420 € |
| 100+ | 18,120 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
21,58 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaXP POWER
Tootja toote nrVER36US120-JA
Tellimiskood2646341
TootevalikVER36 Series
Tehniliste andmete leht
Power Supply ApplicationsITE
No. of Outputs1 Output
Output Power Max36W
Output Voltage - Output 112VDC
Output Current - Output 13A
Output Voltage - Output 2-
Output Current - Output 2-
Output ConnectorBarrel Plug Center Positive 2.1mm x 5.5mm x 12mm
Output Voltage - Output 3-
Output Current - Output 3-
Power Supply Output TypeFixed
Input Voltage AC Min90V
Input Voltage AC Max264V
Input Voltage VAC90V AC to 264V AC
Product RangeVER36 Series
Plug TypeAU, EU, UK, US
SVHCNo SVHC (16-Jul-2019)
Toote ülevaade

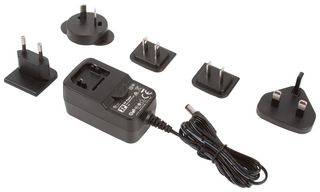

VER36US120-JA is an AC-DC power supply. This wall plug adaptor complies with the very latest energy efficiency VI standards with high active mode efficiency and extremely low no-load power consumption. It suits a wide variety of cost-sensitive applications while maintaining industry-leading performance. Safety approvals include CB Report IEC60950-1, IEC62368-1, UL/cUL60950-1, approved as limited power source (LPS), UL62368-1, EN60950-1, EN62368-1, China Compulsory Certification, AU/NZS62368.1, AU/NZS3112, UKCA.
- European CoC tier 2
- Interchangeable mains connectors included
- Universal input, class II construction, low cost
- 36W output power, 12V output voltage
- 3000mA output current
- 5% total regulation
- 5.5 x 2.1 x 12mm DC jack output connector
- Dimension is 94.5 x 47.0 x 43.9mm
- 90 to 264V AC input voltage, 47 to 63Hz input frequency
- Operating temperature range from 0°C to +60°C
Tehnilised andmed
Power Supply Applications
ITE
Output Power Max
36W
Output Current - Output 1
3A
Output Current - Output 2
-
Output Voltage - Output 3
-
Power Supply Output Type
Fixed
Input Voltage AC Max
264V
Product Range
VER36 Series
SVHC
No SVHC (16-Jul-2019)
No. of Outputs
1 Output
Output Voltage - Output 1
12VDC
Output Voltage - Output 2
-
Output Connector
Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm
Output Current - Output 3
-
Input Voltage AC Min
90V
Input Voltage VAC
90V AC to 264V AC
Plug Type
AU, EU, UK, US
Tehnilised dokumendid (3)
Alternatiivid tootele VER36US120-JA
Leiti 1 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85044095
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (16-Jul-2019)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.352794
