VEP36US12
AC/DC Power Supply, ITE & Medical, 1 Output, 36 W, 12 VDC, 3 A

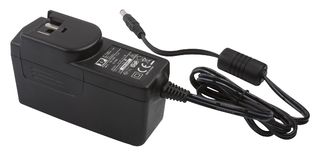

Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaXP POWER
Tootja toote nrVEP36US12
Tellimiskood1861102
TootevalikVEP Series
Tehniliste andmete leht
Ei toodeta enam
Kohaletoimetamise tasu: 25,00 € ühe korra tellimuse kohta. Laos olevate toodete kohaletoimetamine 3 tööpäeva jooksul.
Tooteteave
TootjaXP POWER
Tootja toote nrVEP36US12
Tellimiskood1861102
TootevalikVEP Series
Tehniliste andmete leht
Power Supply ApplicationsITE & Medical
No. of Outputs1 Output
Output Power Max36W
Output Voltage - Output 112VDC
Output Current - Output 13A
Output Voltage - Output 2-
Output Current - Output 2-
Output ConnectorBarrel Plug Center Positive 2.5mm x 5.5mm x 11mm
Output Voltage - Output 3-
Output Current - Output 3-
Input Voltage AC Min90V
Power Supply Output TypeFixed
Input Voltage AC Max264V
Input Voltage VAC90V AC to 264V AC
Product RangeVEP Series
Plug TypeMains Plug Sold Separately
SVHCNo SVHC (15-Jan-2018)
Alternatiivid tootele VEP36US12
Leiti 2 toodet
Toote ülevaade
VEP36US12 is VEP series AC-DC power supply with IT and medical approvals. It also approved by IEC60950-1, EN60950-1, UL60950-1.
- Output power is 36W, output voltage is 12V, output current is 3mA, efficiency is 85%
- Interchangeable input connectors
- Operating temperature range from 0˚C to +40˚C
- Black in colour
- Class II construction
- Efficiency level V
- CEC2008 and EISA 2007 compliant
- Overvoltage/overload/short circuit protection (trip and restart (hiccup mode))
- Switching frequency of 65KHz
Tehnilised andmed
Power Supply Applications
ITE & Medical
Output Power Max
36W
Output Current - Output 1
3A
Output Current - Output 2
-
Output Voltage - Output 3
-
Input Voltage AC Min
90V
Input Voltage AC Max
264V
Product Range
VEP Series
SVHC
No SVHC (15-Jan-2018)
No. of Outputs
1 Output
Output Voltage - Output 1
12VDC
Output Voltage - Output 2
-
Output Connector
Barrel Plug Center Positive 2.5mm x 5.5mm x 11mm
Output Current - Output 3
-
Power Supply Output Type
Fixed
Input Voltage VAC
90V AC to 264V AC
Plug Type
Mains Plug Sold Separately
Tehnilised dokumendid (3)
Seotud tooted
Leiti 1 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85044095
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (15-Jan-2018)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.231332
