VEMD8080
Photo Diode, Silicon Pin, 65°, 0.2 nA, 850 nm, Top View SMD, 8 Pins, -40 °C to 85 °C

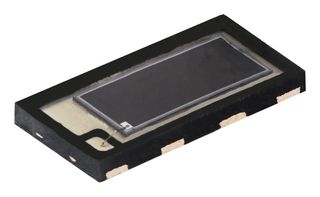

Pilt on illustreeriv. Lugege toote kirjeldust.
11 149 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 100+ | 1,130 € |
| 500+ | 0,988 € |
Hind:Each (Supplied on Cut Tape)
Minimaalne: 100
Mitmekordne: 1
118,00 € (KM-ta)
Sellele tootele lisatakse ümberkerimise tasu 5,00 €
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaVISHAY
Tootja toote nrVEMD8080
Tellimiskood3588569RL
Tehniliste andmete leht
No. of Pins8Pins
Diode Case StyleSMD
Wavelength of Peak Sensitivity850nm
Angle of Half Sensitivity ±65°
Dark Current0.2nA
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product Range-
Automotive Qualification Standard-
SVHCNo SVHC (07-Nov-2024)
Toote ülevaade
VEMD8080 is a silicon PIN photodiode. This is a high speed and high sensitive PIN photodiode with enhanced sensitivity for visible light. It is a low profile surface-mount device (SMD) including the chip with a 4.5mm² sensitive area detecting visible and near infrared radiation. Application includes high speed photo detector, wearables.
- 0.48mm low profile package, enhanced sensitivity for visible light
- Suitable for visible and near infrared radiation, fast response times
- Surface-mount package type, top view package form
- Angle of half sensitivity is ±65deg (typ, Ta=25°C), forward voltage is 1.2V (typ, IF=50mA, Ta=25°C)
- Reverse dark current is 0.2nA (typ, VR = 10V, E = 0, Tamb = 25°C)
- Diode capacitance is 47pF (typ, VR = 0V, f = 1MHz, E = 0, Tamb = 25°C)
- Open circuit voltage is 320mV (typ, Ee = 1mW/cm², λ = 950nm, Tamb = 25°C)
- Rise time is 70ns (typ, VR = 10V, RL = 1Kohm, λ = 830nm, Tamb = 25°C)
- Operating temperature range from -40 to +85°C
Tehnilised andmed
No. of Pins
8Pins
Wavelength of Peak Sensitivity
850nm
Dark Current
0.2nA
Operating Temperature Max
85°C
Automotive Qualification Standard
-
Diode Case Style
SMD
Angle of Half Sensitivity ±
65°
Operating Temperature Min
-40°C
Product Range
-
SVHC
No SVHC (07-Nov-2024)
Tehnilised dokumendid (2)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Philippines
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Philippines
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85414900
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (07-Nov-2024)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.004536
