Prindi leht
1 351 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 1,430 € |
| 50+ | 1,070 € |
| 100+ | 1,010 € |
| 250+ | 0,990 € |
| 500+ | 0,969 € |
| 1000+ | 0,950 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
1,43 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaVISHAY
Tootja toote nrNTCLE300E3302SB
Tellimiskood1888077
TootevalikNTCS
Tehniliste andmete leht
Thermistor TypeNTC
Resistance (25°C)3kohm
Resistance Tolerance (25°C)± 2.18%
Product RangeNTCS
NTC MountingThrough Hole
B-Constant3977K
Thermistor TerminalsWire Leaded
B-Constant Tolerance± 0.75%
NTC Case Size-
Thermal Time Constant (in Air)-
Probe Material-
Probe Diameter-
Lead Length30mm
Operating Temperature Min-40°C
Operating Temperature Max125°C
QualificationAEC-Q200
Automotive Qualification StandardAEC-Q200
Toote ülevaade

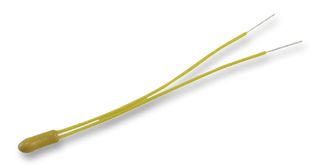

The NTCLE300E3xxxSB series from Vishay are radial leaded NTC thermistors. These NTC thermistors consist of a mini-chip soldered between two insulated (LE300) or non-insulated (LE201) nickel leads and coated with a solid ochre epoxy lacquer. Typical applications include temperature measurement and sensing and control applications.
- Accuracy of 0.5°C between 0°C and 50°C
- Small diameter
- High stability over a long life
- Long and flexible leads for special mounting or assembly requirements
- 3Kohm, 5Kohm and 10Kohm resistance values at 25°C available
- Beta value (B25/85value) is 3977K
- Operating temperature range from -40°C to 125°C
- Maximum power dissipation of 100mW
Rakendused
Sensing & Instrumentation, Industrial, Consumer Electronics, Portable Devices, Automotive
Tehnilised andmed
Thermistor Type
NTC
Resistance Tolerance (25°C)
± 2.18%
NTC Mounting
Through Hole
Thermistor Terminals
Wire Leaded
NTC Case Size
-
Probe Material
-
Lead Length
30mm
Operating Temperature Max
125°C
Automotive Qualification Standard
AEC-Q200
Resistance (25°C)
3kohm
Product Range
NTCS
B-Constant
3977K
B-Constant Tolerance
± 0.75%
Thermal Time Constant (in Air)
-
Probe Diameter
-
Operating Temperature Min
-40°C
Qualification
AEC-Q200
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85332100
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.001
