25 183 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 0,486 € |
| 10+ | 0,407 € |
| 50+ | 0,353 € |
| 100+ | 0,331 € |
| 200+ | 0,317 € |
| 500+ | 0,299 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
0,49 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaVISHAY
Tootja toote nrNTCLE100E3103JB0
Tellimiskood1187031
TootevalikNTCLE
Tehniliste andmete leht
Thermistor TypeNTC
Resistance (25°C)10kohm
Thermistor MountingThrough Hole
Resistance Tolerance (25°C)± 5%
Product RangeNTCLE
NTC MountingThrough Hole
Thermistor TerminalsRadial Leaded
B-Constant3977K
B-Constant Tolerance± 0.75%
NTC Case Size-
Thermal Time Constant (in Air)15s
Probe Material-
Probe Diameter-
Lead Length15mm
Operating Temperature Min-40°C
Operating Temperature Max125°C
Qualification-
Toote ülevaade

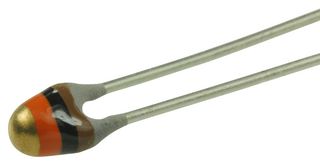

The NTCLE100E3 series from Vishay are standard precision, radial leaded NTC thermistors. This device consists of a chip with two solid copper tin plated leads. It has grey lacquered, colour coded uninsulated terminals. Typical applications include temperature measurement, sensing and control and temperature compensation applications.
- Accurate over a wide temperature range
- High stability over a long life
- Excellent performance ratio
- UL recognized, file E148885 standard
- Resistance value at 25°C ranges from 3.3ohm to 470Kohm
- ±2%, ±3% and ±5% resistance tolerance available
- Beta value (B25/85value) range from 2880K to 4570K
- Tolerance on B25/85-value ranges from ±0.5% to ±3%
- Operating temperature range from -40°C to 125°C
- Maximum power dissipation of 500mW at 55°C
Rakendused
Sensing & Instrumentation, Industrial, Consumer Electronics, Portable Devices
Tehnilised andmed
Thermistor Type
NTC
Thermistor Mounting
Through Hole
Product Range
NTCLE
Thermistor Terminals
Radial Leaded
B-Constant Tolerance
± 0.75%
Thermal Time Constant (in Air)
15s
Probe Diameter
-
Operating Temperature Min
-40°C
Qualification
-
Resistance (25°C)
10kohm
Resistance Tolerance (25°C)
± 5%
NTC Mounting
Through Hole
B-Constant
3977K
NTC Case Size
-
Probe Material
-
Lead Length
15mm
Operating Temperature Max
125°C
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Israel
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Israel
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85334010
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.000132
