MAL209615152E3
Electrolytic Capacitor, Long Life, 1500 µF, 350 V, ± 20%, Snap-In, 5000 hours @ 85°C

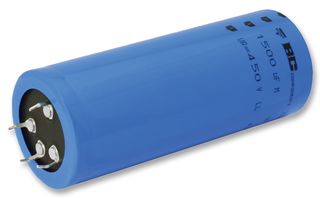

Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaVISHAY
Tootja toote nrMAL209615152E3
Tellimiskood2342183
Tootevalik096 PLL-4TSI Series
Teise nimega222209615152
Tehniliste andmete leht
238 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 47,020 € |
| 3+ | 32,240 € |
| 5+ | 29,430 € |
| 10+ | 26,620 € |
| 20+ | 23,860 € |
| 50+ | 21,630 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
47,02 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaVISHAY
Tootja toote nrMAL209615152E3
Tellimiskood2342183
Tootevalik096 PLL-4TSI Series
Teise nimega222209615152
Tehniliste andmete leht
Capacitance1500µF
Voltage(DC)350V
Voltage(AC)-
Capacitance Tolerance± 20%
Capacitor TerminalsSnap-In
Lifetime @ Temperature5000 hours @ 85°C
PolarityPolar
Product Range096 PLL-4TSI Series
Product Diameter35mm
Product Height80mm
Lead Spacing-
ESR0.071ohm
Ripple Current6A
Operating Temperature Min-40°C
Operating Temperature Max85°C
Qualification-
SVHCNo SVHC (23-Jan-2024)
Toote ülevaade
MAL209615152E3 is a 096 PLL-4TSI series power long life 4-terminal snap-in aluminium electrolytic capacitor. Typical applications include telecommunication and industrial systems, smoothing and filtering applications, switched mode power supplies, renewable energy power converters, energy storage in pulse systems and for excellent mounting stability.
- 1500µF capacitance
- 350V rated voltage
- Polarized aluminium electrolytic capacitors, non-solid electrolyte
- Large types, minimized dimensions, cylindrical aluminium case, insulated with a blue sleeve
- Pressure relief on the side of the aluminium case
- Keyed polarity
- Low ESR, high ripple current capability
- Category temperature range -40°C to +85°C
- Shelf life at 0V, 85°C 1000h
- Nominal case size Ø D x L: 35 x 80mm
Tehnilised andmed
Capacitance
1500µF
Voltage(AC)
-
Capacitor Terminals
Snap-In
Polarity
Polar
Product Diameter
35mm
Lead Spacing
-
Ripple Current
6A
Operating Temperature Max
85°C
SVHC
No SVHC (23-Jan-2024)
Voltage(DC)
350V
Capacitance Tolerance
± 20%
Lifetime @ Temperature
5000 hours @ 85°C
Product Range
096 PLL-4TSI Series
Product Height
80mm
ESR
0.071ohm
Operating Temperature Min
-40°C
Qualification
-
Tehnilised dokumendid (2)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Netherlands
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Netherlands
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85322200
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (23-Jan-2024)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.115
