BIM-IKT-AP6X-H1141 W/KLI3
Magnetic Field Sensor, Pneumatic Cylinders, Rectangular, 10V to 30V, 4 Pin

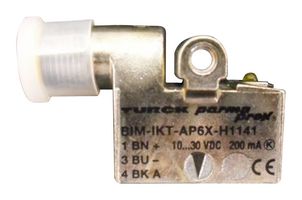

Pilt on illustreeriv. Lugege toote kirjeldust.
4 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 162,320 € |
| 5+ | 159,070 € |
| 10+ | 155,830 € |
| 25+ | 152,580 € |
| 50+ | 149,330 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
162,32 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaTURCK
Tootja toote nrBIM-IKT-AP6X-H1141 W/KLI3
Tellimiskood4284563
Tehniliste andmete leht
Supply Voltage Min10VDC
Supply Voltage DC Min10V
Supply Voltage DC Max30V
Supply Voltage Max30VDC
Sensor HousingRectangular
No. of Pins4 Pin
Output Current-
Sensor Output TypePNP
IP RatingIP67
Product Range-
SVHCNo SVHC (20-Jun-2016)
Toote ülevaade
BIM-IKT-AP6X-H1141 W/KLI3 is a magnetic field sensor. It is activated by magnetic fields and is especially suited for piston position detection in pneumatic cylinders. Based on the fact that magnetic fields can permeate non-magnetizable metals, it is possible to detect a permanent magnet attached to the piston through the aluminium wall of the cylinder.
- ≤ 10m/s pass speed, ≤ ±0.1mm repeatability
- ≤ 0.1mm temperature drift, ≤ 1mm hysteresis
- 10VDC to 30VDC operating voltage, ≤ 200mA DC rated operational current
- 15mA no-load current, ≤ 0.1mA residual current
- ≤ 0.5kV isolation test voltage, 3-wire, NO contact, PNP output function
- 1KHz switching frequency, rectangular, IKT design
- Dimension is 30 x 14.6 x 28mm (lxdxh), metal, GD-Zn housing material
- Connector, M12 × 1 (electrical connection), IP67 protection class
- 55Hz (1mm) vibration resistance, 30g (11ms) shock resistance
- Operating temperature range from -25°C +70°C
Tehnilised andmed
Supply Voltage Min
10VDC
Supply Voltage DC Max
30V
Sensor Housing
Rectangular
Output Current
-
IP Rating
IP67
SVHC
No SVHC (20-Jun-2016)
Supply Voltage DC Min
10V
Supply Voltage Max
30VDC
No. of Pins
4 Pin
Sensor Output Type
PNP
Product Range
-
Tehnilised dokumendid (1)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Switzerland
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Switzerland
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85439000
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Vajab kinnitamist
Vastab RoHS-i ftalaatide nõuetele:Vajab kinnitamist
Väga ohtlik aine:No SVHC (20-Jun-2016)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.067132
