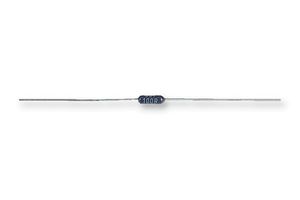

RC55Y-1K0BI
Through Hole Resistor, 1 kohm, RC Series, 250 mW, ± 0.1%, Axial Leaded, 350 V
Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaTT ELECTRONICS / WELWYN
Tootja toote nrRC55Y-1K0BI
Tellimiskood9500723
TootevalikRC Series
Tehniliste andmete leht
1 961 Laos
5 000 Varusid saab nüüd reserveerida
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 2,700 € |
| 10+ | 1,790 € |
| 25+ | 1,400 € |
| 50+ | 1,390 € |
| 100+ | 1,280 € |
| 250+ | 1,170 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
2,70 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaTT ELECTRONICS / WELWYN
Tootja toote nrRC55Y-1K0BI
Tellimiskood9500723
TootevalikRC Series
Tehniliste andmete leht
Resistance1kohm
Product RangeRC Series
Power Rating250mW
Resistance Tolerance± 0.1%
Resistor Case / PackageAxial Leaded
Voltage Rating350V
Resistor TechnologyMetal Film
Temperature Coefficient± 15ppm/°C
Resistor TypePrecision
Product Diameter2.5mm
Product Length7.2mm
Product Width-
Operating Temperature Min-55°C
Operating Temperature Max155°C
Qualification-
SVHCNo SVHC (21-Jan-2025)
Toote ülevaade
The RC55Y-1K0BI is a precision Metal Film Resistor with low TCRs over a wide resistance range, low noise and negligible voltage coefficient. A metal film is deposited onto a high quality ceramic former. Nickel-plated steel caps are force fitted to the former and termination wires are welded to the caps. The resistor is adjusted to value by a helical cut in the film and the body is protected with a specially formulated epoxy coating.
- Lead Bearing Wire Finish
- Solder Coated Copper Wire Termination
- 110°C/W Thermal Impedance
- -55 to +155°C Ambient Temperature Range
- 7.2 x 2.5mm Size
Tehnilised andmed
Resistance
1kohm
Power Rating
250mW
Resistor Case / Package
Axial Leaded
Resistor Technology
Metal Film
Resistor Type
Precision
Product Length
7.2mm
Operating Temperature Min
-55°C
Qualification
-
Product Range
RC Series
Resistance Tolerance
± 0.1%
Voltage Rating
350V
Temperature Coefficient
± 15ppm/°C
Product Diameter
2.5mm
Product Width
-
Operating Temperature Max
155°C
SVHC
No SVHC (21-Jan-2025)
Tehnilised dokumendid (1)
Alternatiivid tootele RC55Y-1K0BI
Leiti 3 toodet
Seotud tooted
Leiti 4 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Great Britain
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Great Britain
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85332100
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (21-Jan-2025)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.00024
