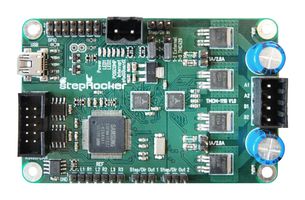

TMCM-1110-STEPROCKER

The TMCM-1110 STEPROCKER from Trinamic is a single axis stepper motor controller/driver module for sensorless load dependent current control. The device is powered by Trinamic stallGuard2™, coolStep™ and spreadCycle™ chopper technology and has a trapezoidal ramp generator. The TMCM-1110 is capable of driving up to 4A of current from each output (with proper heatsinking). It provides a RS485, USB, S/D and encoder interface. An integrated protocol processor supplies a high level TMCL communication.

• Motor supply range from 10V to 30V
• 2.8A phase current RMS
• 1 to 256 microsteps
• Dimension is 55mm x 85mm x 15mm (L x W x H)

Rakendused

Motor Drive & Control

Hoiatused

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
