XS512B1PAL2

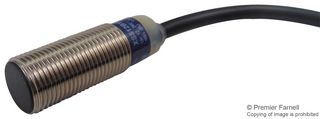

Inductive Proximity Sensor, OsiSense XS 512 Series, 2.5 mm, PNP, M12, Cable, 12-24V
Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaTELEMECANIQUE SENSORS
Tootja toote nrXS512B1PAL2
Tellimiskood2663053
TootevalikXS Series
Tehniliste andmete leht
1 Laos
Vajate rohkem?
Ekspresstarne 1–2 tööpäeva jooksul
Tellige enne kella 17:00
Tasuta standardtarne
tellimustele alates 0,00 €
Täpsed tarneajad arvutatakse kassas
| Kogus | |
|---|---|
| 1+ | 53,630 € |
| 5+ | 52,560 € |
| 10+ | 51,480 € |
| 25+ | 50,410 € |
| 50+ | 49,340 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
53,63 € (KM-ta)
tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
Tooteteave
TootjaTELEMECANIQUE SENSORS
Tootja toote nrXS512B1PAL2
Tellimiskood2663053
TootevalikXS Series
Tehniliste andmete leht
Sensing Range Max2mm
Sensor TypeInductive Proximity Sensor
Operating Temperature Max70°C
Thread Size - MetricM12
Sensing Distance Min-
Sensing Distance Max-
Sensor Output TypePNP
Sensing Distance Nom2mm
Supply Voltage DC Min12V
Supply Voltage Min12VDC
Supply Voltage DC Max24V
Supply Voltage Max24VDC
Sensor Output Type3-Wire, PNP, NO
Sensor Case / PackageCylindrical M12 Thread
Sensor TerminalsCable
Sensor Body MaterialBrass
IP RatingIP68, IP69K
Operating Temperature Min-25°C
Product RangeXS Series
SVHCNo SVHC (17-Dec-2015)
Toote ülevaade
The XS512B1PAL2 is a flush mountable general purpose Inductive Proximity Sensor offers discrete output signal, DC PNP-NO output, cable electrical connection and frontal detection face. It is made of metal fixed body, PPS front, nickel plated brass enclosure and PvR wire insulation.
- 1 Yellow LED for output state
- 3-wire wiring technique
- IP68/IP69K Protection rating
Rakendused
Sensing & Instrumentation
Tehnilised andmed
Sensing Range Max
2mm
Operating Temperature Max
70°C
Sensing Distance Min
-
Sensor Output Type
PNP
Supply Voltage DC Min
12V
Supply Voltage DC Max
24V
Sensor Output Type
3-Wire, PNP, NO
Sensor Terminals
Cable
IP Rating
IP68, IP69K
Product Range
XS Series
Sensor Type
Inductive Proximity Sensor
Thread Size - Metric
M12
Sensing Distance Max
-
Sensing Distance Nom
2mm
Supply Voltage Min
12VDC
Supply Voltage Max
24VDC
Sensor Case / Package
Cylindrical M12 Thread
Sensor Body Material
Brass
Operating Temperature Min
-25°C
SVHC
No SVHC (17-Dec-2015)
Tehnilised dokumendid (2)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Indonesia
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Indonesia
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:90318080
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Y-Ex
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (17-Dec-2015)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.089
