DK-CH201

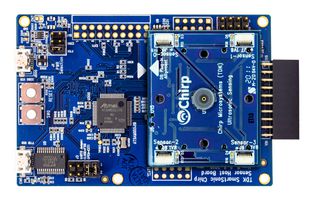

DK-CH201 is a comprehensive development platform for CH201, a long-range miniature ultrasonic time-of-flight range sensor with a range of up to 5m. The development kit is equipped with an on-board CH201 sensor and up to four external CH201 or CH101 sensor modules can be connected to the board via flat-flex cables for easy prototyping. The DK-CH201 is designed around SAMG55 Cortex-M4 MCU, and can be used by developers for rapid evaluation and development of CH201 based solutions. The DK-CH201 includes an on-board Embedded Debugger so external tools are not required to program or debug the SAMG55 MCU. The DK-CH201 includes an on-board Embedded Debugger so external tools are not required to program or debug the SAMG55 MCU.

• Ultralow power range sensing
• Accurate range measurement regardless of target size
• Detects objects of any colour, including optically transparent ones
• Immunity to ambient noise
• Works under any lighting condition
• Synchronized multi-sensor operation enables 2D and 3D range sensing
• Wide field of view (FoV)
