STEVAL-ILL009V3

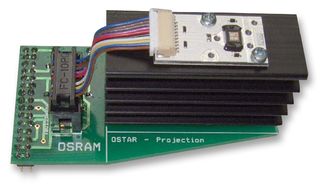

STEVAL-ILL009V3 load board should be connected through the 30 pin connector to the STEVAL-ILL009V1 control board to be able to show the light effect with the board. The OSTAR projection module, used as light source, has a maximum forward current of 700mA. The NTC resistor is directly assembled on the OSTAR module. As the power of the module is above 10W, the heatsink is used to keep the temperature in range. The biggest advantage of the OSTAR module is that red, green and blue LEDs are in the same package, very closely assembled and therefore the colour effect is better than with three separate LEDs.

• Outstanding brightness and luminance
• Dominant wavelength is 617nm amber (red)
• Dominant wavelength colour 2 is 525nm true green
• Dominant wavelength colour 3 is 464nm blue
• Viewing angle at 50% IV is 120deg (lambertian emitter)
• Light emitting surface (typ) 2.1mm2 x 2.1mm2
• ESD withstand voltage up to 2kV acc. To JESD22-A114-B

Rakendused

LED Lighting
