2P6G-PCIE-SATA-CARD

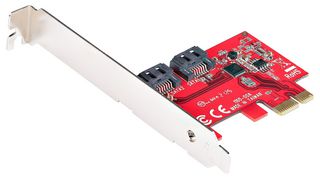

The Startech 2P6G-PCIE-SATA-CARD is a two port SATA 6Gb/s controller card that allows you to add two SATA HDD or SSD drives to your computer system through a PCI-Ex slot. Built around the ASM1061 controller, the card supports a combined total throughput of up to 4Gb/s. Designed for plug & play installation, the card supports all popular operating systems and can be installed into a full size or SFF chassis with the included low profile bracket.

• Add two SATA 6Gb/s ports to your desktop or server via a PCI-Express x1 slot
• Connect two HDD or SSD drives
• Single chip architecture built around the ASM1061 controller with combined bandwidth up to 4Gb/s
• Supports Port Multipler and NCQ (Native Command Queue) functions
• Supports software RAID
• Supports PCI-Express 2.0, SATA 3.2 & AHCI 1.4
• Supports Windows 7/8/10/11, Server 2012-2022, macOS 10.6.8-15, Linux 2.6.32+ (LTS only)
• Supplied with standard and low-profile brackets for versatile installation options
• Lifetime limited manufacturer warranty

Sisukord

PCI-Ex SATA card, low profile bracket and user guide
