LG01-2000A005
Flow Switch, LG01 Series, 0 l/min to 0.22 l/min, 8.9 mm Port Size, 3 bar, 5 to 12 Vdc

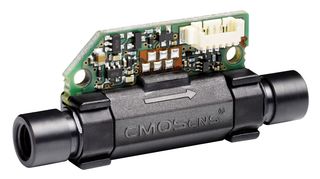

Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaSENSIRION
Tootja toote nrLG01-2000A005
Tellimiskood1892815
TootevalikLG01-2000A Series
Tehniliste andmete leht
Ei toodeta enam
Tooteteave
TootjaSENSIRION
Tootja toote nrLG01-2000A005
Tellimiskood1892815
TootevalikLG01-2000A Series
Tehniliste andmete leht
Flow Switch Type-
Flow Rate Min0l/min
Flow Rate Max0.05l/min
Operating Pressure Min-
Operating Pressure Max-
Supply Voltage Min5V
Supply Voltage Max12V
Accuracy10%
Contact Rating6.8mA
Switching Voltage AC Max-
Switching Voltage DC Max-
Media TypeLiquid
Process Connection Size1/4-28
Process Connection TypeTube
Pipe Size-
Housing Material-
Operating Temperature Min10°C
Operating Temperature Max50°C
Product RangeLG01-2000A Series
Qualification-
SVHCNo SVHC (10-Jun-2022)
Pressure Max3bar
Port Size8.9mm
Supply Voltage DC Max12V
Toote ülevaade
The LG01-2000A005 is a liquid flow switch and bubble detector. The output signal is 5V when the flow rate is higher than the specified flow switch limit and 0V below this limit or when air or bubbles are found inside the sensors flow channel instead of liquid. Excellent chemical resistance and bio-compatibility are ensured, flow path of the LG01 liquid flow switch is formed by a simple, straight glass capillary.
- Detection of low liquid flow in ml-range
- Ultra fast response time of 100ms
- Operating temperature range from 10°C to 50°C
Tehnilised andmed
Flow Switch Type
-
Flow Rate Max
0.05l/min
Operating Pressure Max
-
Supply Voltage Max
12V
Contact Rating
6.8mA
Switching Voltage DC Max
-
Process Connection Size
1/4-28
Pipe Size
-
Operating Temperature Min
10°C
Product Range
LG01-2000A Series
SVHC
No SVHC (10-Jun-2022)
Port Size
8.9mm
Flow Rate Min
0l/min
Operating Pressure Min
-
Supply Voltage Min
5V
Accuracy
10%
Switching Voltage AC Max
-
Media Type
Liquid
Process Connection Type
Tube
Housing Material
-
Operating Temperature Max
50°C
Qualification
-
Pressure Max
3bar
Supply Voltage DC Max
12V
Tehnilised dokumendid (4)
Seotud tooted
Leiti 1 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Switzerland
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Switzerland
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:90261021
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (10-Jun-2022)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.042411
