SKM150GAL12T4
IGBT Module, Single, 232 A, 1.8 V, 125 °C, Module

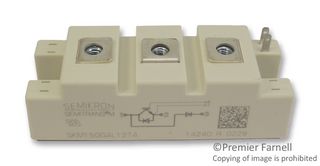

Pilt on illustreeriv. Lugege toote kirjeldust.
Saadaval tellimiseks
Teavitage mind, kui toode on uuesti laos
| Kogus | |
|---|---|
| 1+ | 78,730 € |
| 5+ | 74,210 € |
| 10+ | 69,390 € |
| 50+ | 66,870 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
78,73 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaSEMIKRON
Tootja toote nrSKM150GAL12T4
Tellimiskood2423685
Tehniliste andmete leht
Transistor PolarityNPN
IGBT ConfigurationSingle
DC Collector Current232A
Continuous Collector Current232A
Collector Emitter Saturation Voltage Vce(on)1.8V
Collector Emitter Saturation Voltage1.8V
Power Dissipation Pd-
Power Dissipation-
Collector Emitter Voltage V(br)ceo1.2kV
Junction Temperature Tj Max125°C
Operating Temperature Max125°C
Transistor Case StyleModule
IGBT TerminationStud
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 4 Fast [Trench]
Transistor MountingPanel
Product Range-
Toote ülevaade
The SKM150GAL12T4 is a SEMITRANS® 2 IGBT Module for use with electronic welders at fsw up to 20kHz and brake chopper. It features insulated copper base plate using DBC technology (Direct Bonded Copper) and increased power cycling capability.
- Single switch
- IGBT4 = 4th generation fast Trench IGBT (Infineon)
- CAL4 = Soft switching 4th generation CAL-diode
- Integrated gate resistor
- UL recognized, file number E63532
Rakendused
Maintenance & Repair, Power Management, Motor Drive & Control
Tehnilised andmed
Transistor Polarity
NPN
DC Collector Current
232A
Collector Emitter Saturation Voltage Vce(on)
1.8V
Power Dissipation Pd
-
Collector Emitter Voltage V(br)ceo
1.2kV
Operating Temperature Max
125°C
IGBT Termination
Stud
IGBT Technology
IGBT 4 Fast [Trench]
Product Range
-
IGBT Configuration
Single
Continuous Collector Current
232A
Collector Emitter Saturation Voltage
1.8V
Power Dissipation
-
Junction Temperature Tj Max
125°C
Transistor Case Style
Module
Collector Emitter Voltage Max
1.2kV
Transistor Mounting
Panel
Tehnilised dokumendid (2)
Alternatiivid tootele SKM150GAL12T4
Leiti 3 toodet
Seotud tooted
Leiti 3 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Slovak Republic
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Slovak Republic
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85412900
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.18
