XB5EVB8

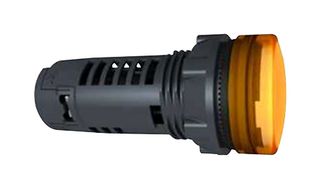

The XB5EVB8 from Schneider Electric is a Harmony XB5 yellow monolithic pilot light Ø22 plain lens with integral 24V LED. This Harmony XB5 complete control buttons features 1KV conforming to IEC 61000-4-5 surge withstand, class II conforming to IEC 60536 overvoltage category, IP66 conforming to IEC 60529 IP degree of protection, NEMA 13 NEMA 4X NEMA degree of protection, IK05 conforming to IEC 50102 IK degree of protection, EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14 and JIS C 4520 standards. It is CSA certified and UL listed.

• Plastic bezel material and plastic fixing collar material, steady signalling
• Round shape of signalling unit head, protected LED source, integral LED bulb base
• Rated supply voltage [Us] of 24V AC/DC, 50/60Hz and TH protective treatment
• Ambient air temperature for operation range from -25°C to 70°C
• 18mA current consumption, 250V insulation voltage (degree of pollution 3) conforming to EN 60947-1
• Rated impulse withstand voltage of 4KV conforming to EN 60947-1
• 2KV conforming to IEC 61000-4-4 resistance to fast transients
• 10V/m conforming to IEC 61000-4-3 resistance to electromagnetic fields
• 100000h service life at rated voltage and 25°C
• Dimension of 29mm x 29mm x 54mm (H x W x D)

Rakendused

Signalling
