R&S HM8018...

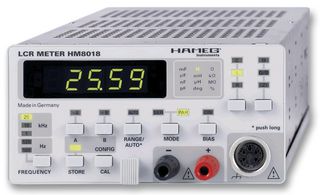

LCR Meter, Bench, 25 kHz, 9.999 kH, 99900 µF, 99.9 ohm

R&S HM8018... - LCR Meter, Bench, 25 kHz, 9.999 kH, 99900 µF, 99.9 ohm

Pilt on illustreeriv. Lugege toote kirjeldust.

Tootja toote nr:
R&S HM8018...
Tellimiskood:
825580
Tehniliste andmete leht:
R&S HM8018...   Datasheet
Vaadake kõiki tehnilisi dokumente

Tooteteave

Kas te soovite näha sarnaseid tooteid? Valige lihtsalt allpool vajalikud omadused ja klõpsake nupule ×


:
Bench

:
25kHz

:
9.999kH

:
99900µF

:
99.9ohm

:
-

Leia sarnaseid tooteid Valige ja muutke ülalolevaid atribuute, et leida sarnaseid tooteid.

Tehnilised dokumendid (2)

Toote ülevaade

Measured values are displayed on a 3½ digit LED with a basic accuracy of 0.5%. Measurements are performed at a 2 per second rate. Through the 3 used oscillator frequencies, which automatically switch upon range selection, the instrument always operates at the optimum test frequency. Measures L, C, series and parallel components of inductances and capacitances can be determined with the HM8018, providing easy evaluation of the quality or dissipation factors of the components under test. A special measurement technique allows separation of real and imaginary components up to a phase angle of 45° with an accuracy of <=1%. The high degree of resolution, 10mW/ 0.01µS ensures precise and reliable test results. The accuracy and operability of the HM8018 make it ideal for use in virtually every area of electronic technology, including quality control and laboratory applications. The low number of operating controls ensures a maximum of measurement functions.
  • Measurement functions: L, C, R, Θ, Q/D, Z
  • Basic accuracy: 0.2  %
  • Five measurement frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 25 kHz
  • Max. resolution: 0.001 R, 0.001 pF, 0.01 µH

Sisukord

LCR Meter HM8018, Operating manual.

Allmärkused

In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.

Ei toodeta enam

550,00 €

Hind pole saadaval. Võtke ühendust klienditeenindusega.

Hind:
Tükitoode
Mitmekordne: 1 Minimaalne: 1
Kogus Hind Teie hind


1+ 550,00 €
Kampaaniahind
Lepingujärgne hind
Veebipoe hind
Veebipoe lepingujärgne hind




Hind pole saadaval. Võtke ühendust klienditeenindusega.

No longer stocked:: No Longer Manufactured::
