T5989DV
Power Supply, Raspberry Pi Boards, UK/Euro/US/Aus Plugs, 1.5m Micro USB-B 5 Pin Cable, 90 to 264 VAC
Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaRASPBERRY-PI
Tootja toote nrT5989DV
Tellimiskood2534971
TootevalikStontronics RPi3 Power Supply
Tehniliste andmete leht
2 153 Laos
60 Varusid saab nüüd reserveerida
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 7,540 € |
| 10+ | 7,480 € |
| 150+ | 7,330 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
7,54 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaRASPBERRY-PI
Tootja toote nrT5989DV
Tellimiskood2534971
TootevalikStontronics RPi3 Power Supply
Tehniliste andmete leht
Power Supply ApplicationsITE
Input Voltage Range90V AC to 264V AC
Output Voltage5.1VDC
No. of Outputs1 Output
Output Current2.5A
Output Power Max13W
Output Voltage - Output 15.1V
For Use WithRaspberry Pi Boards
Plug TypeAU, EU, UK, US
Output Current - Output 12.5A
Output Voltage - Output 2-
Product RangeStontronics RPi3 Power Supply
Output Current - Output 2-
Output ConnectorUSB Micro B
Output Voltage - Output 3-
Output Current - Output 3-
Power Supply Output TypeFixed
Input Voltage VAC94V AC to 264V AC
SVHCNo SVHC (17-Jan-2022)
Toote ülevaade

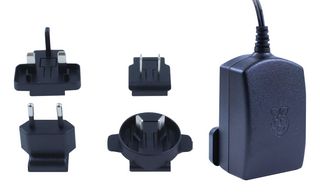

T5989DV is a official Raspberry Pi power supply, ideal for use with any Raspberry Pi board. This power supply comes with 1.5m Micro USB lead and four changeable heads for use in the UK, Europe, Australia & US regions. It supports up to 2.5A of current which is plenty to power devices through the four USB ports on the board.
- Designed to take full advantage of the improved power management on the Raspberry Pi 3
- Compatible with all Raspberry Pi Models
- ErP Level 6 Efficiency Rating
- 50,000 hour MTBF
- 1 years warranty
- Input voltage range from 90 to 264VAC and 47 to 63Hz input frequency
- Short circuit, over current, over voltage protection
- 1500mm Micro USB B 5 pin output cable
- 5.1VDC output voltage and 120mVp-p maximum ripple & noise
- Operating temperature range from 0°C to 40°C
Sisukord
1.5m Micro USB lead, Four changeable heads (for use in the UK, Europe, Australia & US regions).
Tehnilised andmed
Power Supply Applications
ITE
Output Voltage
5.1VDC
Output Current
2.5A
Output Voltage - Output 1
5.1V
Plug Type
AU, EU, UK, US
Output Voltage - Output 2
-
Output Current - Output 2
-
Output Voltage - Output 3
-
Power Supply Output Type
Fixed
SVHC
No SVHC (17-Jan-2022)
Input Voltage Range
90V AC to 264V AC
No. of Outputs
1 Output
Output Power Max
13W
For Use With
Raspberry Pi Boards
Output Current - Output 1
2.5A
Product Range
Stontronics RPi3 Power Supply
Output Connector
USB Micro B
Output Current - Output 3
-
Input Voltage VAC
94V AC to 264V AC
