PWM200VHF-HH/BP

A VHF combo handheld and beltpack wireless microphone system with simple set-up and easy operation. Suitable for use in karaoke, entertainment, classroom, conference and other presentation applications.

• Operates on licence free VHF frequencies for use within the UK
• Handheld microphone transmitter with anti-roll shaped microphone head
• Beltpack transmitter with lavalier (lapel) & headset microphones
• Flexi-cote rubber coating on transmitters for improved microphone grip and reduced handling noise
• On/Standby/Off switch on transmitters
• High feedback rejection circuits
• Low battery warning and RF transmission LED indicators
• RECEIVER:
• Carrier frequency: 173.8MHz & 175.0MHz
• System frequency range: 40Hz-20kHz (dependant of mic)
• S/N Ratio: <gt/>70dB
• Distortion: <lt/>1%
• Output connectors: Balanced XLR and unbalanced 6.35mm (¼”) jack output connections
• Fixed line level output on XLR connection, adjustable level on Jack connection
• Power supply: 12-15V DC, 500mA (adaptor included)
• Dimensions (WxHxD): 175x135x43mm (excl. antenna)
• Weight: 220g
• HANDHELD TRANSMITTER:
• Frequency response: 50Hz-15kHz
• Power supply: 2x 1.5V AA (test batteries included)
• Battery life: Up to 8hrs (alkaline)
• BELTPACK TRANSMITTER:
• Connector: 3.5mm Locking jack
• Power supply: 2x 1.5V AA (test batteries included)
• Battery life: Up to 8hrs (alkaline)

Sisukord

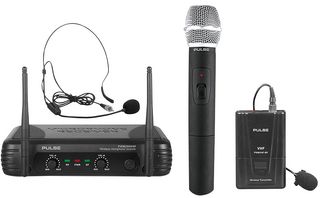

Contents: VHF Receiver, Handheld microphone transmitter, Beltpack transmitter, Lavalier microphone, Headset microphone, 4x AA batteries, Power adaptor, User manual.
