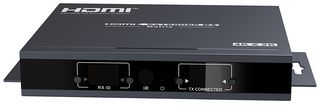

PSG3456

Easily extend an Ultra HD 4K HDMI source over a single Cat5e/6 network cable. The PSG3456 utilises a versatile matrix design that supports 1-to-1 and 1-to-many configurations using a standard IGMP switch.

• Matrix design supports 1-to-1 and 1-to-many configuration
• Supports resolutions up to 4Kx2K UHD @30Hz and 1080p Full HD @60Hz
• Maximum cable run 120m (Cat6) or 100m (Cat5e)
• HDbitT technology for stable performance
• Smart control app for PC and mobile devices
• IR Passback support (20-60kHz frequency) to control source devices
• HDMI 1.3, HDCP 1.4 compliant
• Channel ID display and power/activity status LED indicators
• Easy access reset button (TX & RX)
• Transmitter connections: HDMI in, RJ45 out, IR out
• Receiver connections: RJ45 in, HDMI out, IR in
• Dimensions (HxWxD): 24x164x108mm (each)
• Wireless remote requires 1x CR2025 battery

Sisukord

Transmitter, receiver, remote, 2x AC adaptor, 2x IR cables, mounting brackets and user guide
