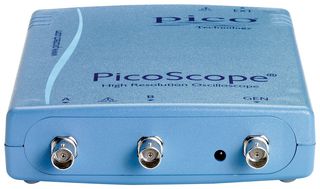

PICOSCOPE 4262

The PicoScope 4262 is a dual channel, 16 bit high resolution oscilloscope (VHRO) with an integrated low distortion signal generator. With its 5 MHz bandwidth, it can easily analyse audio, ultrasonic and vibration signals, characterise noise in switched mode power supplies, measure distortion and perform a wide range of precision measurement tasks.

• Low noise
• Two channels
• 16 MS buffer
• 16-bit resolution
• 10 MS/s sampling
• 5 MHz bandwidth
• Advanced digital triggers
• Low-distortion signal generator
• Arbitrary waveform generator
• USB powered

Rakendused

Maintenance & Repair, Test & Measurement, Audio

Sisukord

PicoScope 4262, TA375 One 100 MHz Passive Probe Per Channel 1:1, 10:1 Switchable, BNC, MI106 USB2 Cable, 1.8m, Quick Start Guide

Märkused

Software and user manuals available from: https://www.picotech.com/downloads. In addition, we have calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
