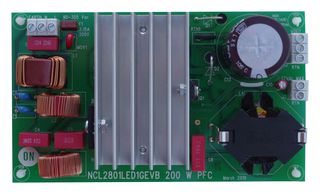

NCL2801LED1GEVB
EVAL BOARD, 200W POWER FACTOR CTRL
Pilt on illustreeriv. Lugege toote kirjeldust.
Saadaval tellimiseks
Tootja standardne tarneaeg: 54 nädal(at)
Teavitage mind, kui toode on uuesti laos
| Kogus | |
|---|---|
| 1+ | 196,000 € |
| 5+ | 192,650 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
196,00 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaONSEMI
Tootja toote nrNCL2801LED1GEVB
Tellimiskood3131467
Device TopologyBoost
No. of Outputs1Outputs
Output Current-
Output Voltage450VDC
Input Voltage Min100VAC
Input Voltage Max277VAC
Core ChipNCL2801
Dimming Control TypeAnalogue
Kit ContentsEval Board NCL2801
Product Range-
SVHCNo SVHC (15-Jan-2018)
Toote ülevaade
High precision 200W power factor controller board is configured as a 200W power factor corrector front end suitable for conditioning the input power of various switch mode power supplies. This board provides high power factor and low total harmonic distortion of input current over the extended input voltage range and very wide output load range. Performance exceeds requirements for many demanding applications including LED lighting, computing power and white goods products.
- Very low THDi across a wide operating range
- High power factor
- Fast response to dynamic loading
- Valley count frequency foldback improves efficiency
- Tight output voltage regulation
- Two levels of overvoltage protection
- Brown out/in protection, line feedforward
- Current limit, open/short pin protection
- Input voltage range from 100 to 277VAC
- Output voltage of 450V ±4% VDC, efficiency (<gt/>30% load, 230VAC) of 95% minimum
Tehnilised andmed
Device Topology
Boost
Output Current
-
Input Voltage Min
100VAC
Core Chip
NCL2801
Kit Contents
Eval Board NCL2801
SVHC
No SVHC (15-Jan-2018)
No. of Outputs
1Outputs
Output Voltage
450VDC
Input Voltage Max
277VAC
Dimming Control Type
Analogue
Product Range
-
Tehnilised dokumendid (1)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:United States
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:United States
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (15-Jan-2018)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.25
Toote jälitatavus
