A3CA-7011

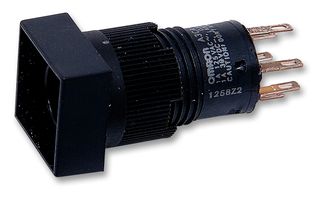

Pushbutton Switch, A3C, 12 mm, SPST-NO, SPST-NC, Momentary, Square
Pilt on illustreeriv. Lugege toote kirjeldust.
120 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 15,870 € |
| 5+ | 15,510 € |
| 10+ | 15,170 € |
| 20+ | 14,520 € |
| 50+ | 13,650 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
15,87 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
Tootja toote nrA3CA-7011
Tellimiskood619220
TootevalikA3C
Tehniliste andmete leht
Pushbutton Switch TypeStandard
Product RangeA3C
Panel Cutout Diameter12mm
Contact ConfigurationSPST-NO, SPST-NC
Switch OperationMomentary
Contact Current Max1A
Contact Voltage AC Nom250V
Pushbutton Actuator StyleSquare
Actuator / Cap Colour-
Contact Current AC Max1A
Contact Voltage DC Nom30V
Contact Voltage VAC125V
Contact Current DC Max1A
Contact Voltage VDC30V
IP RatingIP40
Switch MountingPanel Mount
Switch TerminalsSolder Lug
Illumination Colour-
Panel Cutout (H x W)-
Toote ülevaade
The A3CA-7011 is a square momentary Pushbutton Switch with solder terminals and standard load contact. The pushbutton switch features high-intensity uniform surface lighting, round body enables easy hole making and miniature size with excellent feeling of operation.
- 100MΩ at 500VDC Minimum insulation resistance
- IP40 Protection rating
- -10 to +55°C Operating temperature range
- Momentary action
Rakendused
Industrial
Hoiatused
Do not apply a voltage higher than the maximum rated operating voltage between the lamp terminals, as there is a risk that the lamp will be damaged and the Pushbutton will be ejected.
Tehnilised andmed
Pushbutton Switch Type
Standard
Panel Cutout Diameter
12mm
Switch Operation
Momentary
Contact Voltage AC Nom
250V
Actuator / Cap Colour
-
Contact Voltage DC Nom
30V
Contact Current DC Max
1A
IP Rating
IP40
Switch Terminals
Solder Lug
Panel Cutout (H x W)
-
Product Range
A3C
Contact Configuration
SPST-NO, SPST-NC
Contact Current Max
1A
Pushbutton Actuator Style
Square
Contact Current AC Max
1A
Contact Voltage VAC
125V
Contact Voltage VDC
30V
Switch Mounting
Panel Mount
Illumination Colour
-
Tehnilised dokumendid (1)
Seotud tooted
Leiti 6 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Japan
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Japan
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.004082
