S32K118EVB2Q048
Evaluation Board, S32K118, 32bit, ARM Cortex-M0+
Pilt on illustreeriv. Lugege toote kirjeldust.
3 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 106,670 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
106,67 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaNXP
Tootja toote nrS32K118EVB2Q048
Tellimiskood3923717
Tehniliste andmete leht
Silicon ManufacturerNXP
No. of Bits32bit
Silicon Family NameS32K
Core ArchitectureARM
Core Sub-ArchitectureCortex-M0+
Silicon Core NumberS32K118
Kit ContentsEvaluation Board S32K118
Product Range-
SVHCNo SVHC (27-Jun-2024)
Toote ülevaade

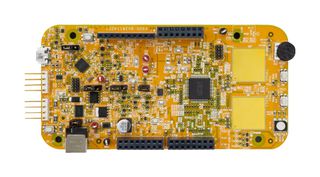

S32K118EVB2Q048 is a low-cost evaluation and development board for general-purpose industrial and automotive applications. Based on the 32bit Arm® Cortex®-M0+ S32K11 MCU, the S32K118EVB offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options. The S32K118EVB integrates a security module complying Secure Hardware Extension (SHE) specification for quick application prototyping and demonstration.
- S32K118 evaluation board for general purpose automotive applications
- TJA1027 LIN 2.2A/SAE J2602 transceiver
- UJA1169TK mini high-speed CAN system basis chip
- 32bit Arm® Cortex®-M0+ based S32K118 microcontroller for general purpose
- OpenSDA: serial and debug adapter with support for several industry-standard debug interfaces
- Easy access to the MCU I/O header pins for prototyping
- Flexible power supply options of micro USB or external 12V supply
- On-board connectivity for CAN, LIN, UART/SCI interfaces
- Arduino® UNO pint-out compatible with expansion “shield” support compatibility
- 2 x touchpads, 1 x potentiometer, 1 x RGB LED, 2 x push buttons
Tehnilised andmed
Silicon Manufacturer
NXP
Silicon Family Name
S32K
Core Sub-Architecture
Cortex-M0+
Kit Contents
Evaluation Board S32K118
SVHC
No SVHC (27-Jun-2024)
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
S32K118
Product Range
-
Tehnilised dokumendid (1)
Seotud tooted
Leiti 4 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:84733020
US ECCN:5A992.c
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (27-Jun-2024)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.130634
