OM13080UL

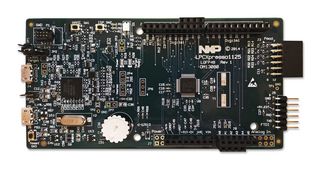

Development Board, LPC112X LPCXpresso MCU Family, On-Board Debug Probe, Expansion Options
Pilt on illustreeriv. Lugege toote kirjeldust.
3 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 33,810 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
33,81 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaNXP
Tootja toote nrOM13080UL
Tellimiskood2471048
Tehniliste andmete leht
Silicon ManufacturerNXP
No. of Bits32bit
Silicon Family NameLPC1100
Core ArchitectureARM
Core Sub-ArchitectureCortex-M0
Silicon Core NumberLPC1125
Kit ContentsDev Board LPC1125
Product Range-
SVHCNo SVHC (27-Jun-2024)
Toote ülevaade
The LPCXpresso™ family of boards provides a powerful and flexible development system for NXP®'s Cortex�-M family of MCUs. They can be used with a wide range of development tools, including the NXP’s LPCXpresso IDE. The LPCXpresso1125 board has been developed by NXP to enable evaluation of and prototyping with the LPC112x family of MCUs, and is based on the LPC1125JBD48 version of the MCU.
- On-board debug probe compatible with LPCXpresso IDE out-of-the-box, and with other toolchains via optional firmware including CMSIS-DAP
- External debug probe option
- Tri-color LED, target Reset, ISP & WAKE buttons for easy testing of software functionality
- Expansion options based on Arduino UNO and Pmod™, plus additional expansion port pins
- UART, SPI, I2C and GPIO compatible Diligent Pmod connector
- FTDI UART connector
- Fully supported by LPCXpresso Eclipse-based IDE and GNU C/C++ toolchain
- USB Virtual communications port
- Target port expansion interface pin compatible with Arduino Rev 3 Shield boards
- Target MCU current measurement header
- Potentiometer connected to Target ADC
- USB Powered
Tehnilised andmed
Silicon Manufacturer
NXP
Silicon Family Name
LPC1100
Core Sub-Architecture
Cortex-M0
Kit Contents
Dev Board LPC1125
SVHC
No SVHC (27-Jun-2024)
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
LPC1125
Product Range
-
Tehnilised dokumendid (2)
Seotud tooted
Leiti 1 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Sweden
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Sweden
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:90308200
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (27-Jun-2024)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.079832
