Prindi leht
12 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 4,970 € |
| 5+ | 4,350 € |
| 10+ | 3,600 € |
| 20+ | 3,230 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
4,97 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaNORGREN
Tootja toote nrC02470618
Tellimiskood3520134
TootevalikPneufit C
Tehniliste andmete leht
Fitting TypeElbow
Pneumatic ConnectionG1/8
Bore Size6mm
External Diameter13mm
Operating Pressure Max10bar
Tubing Outer Diameter6mm
Thread SizeG1/8
Fitting MaterialPBT (Polybutylene Terephthalate)
Product RangePneufit C
Toote ülevaade

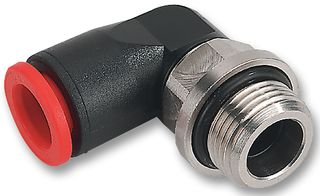

The C02470618 is a push-in 90° Swivel Elbow Adaptor made of impact-resistant PBT body. It has release buttons, stainless steel grab ring with special design to retain softer tube and provide easy reliability. The silicone-free U-packing provides leak tight tube seal under side loading. The stem seal provides leak tight 360° swivel connection. The nickel-plated brass threads and notches on hex to signify NPT.
- Offers fast assembly with no need for tools and providing optimum flow
- Nickel-plated brass components provide corrosion and contamination resistance and an extended life
- 10bar Maximum operating pressure
- 750mm of Hg Vacuum
Rakendused
Industrial
Hoiatused
The Norgren Pneufit® C range must not be used in vehicle air braking or ancillary systems. For push-in fittings suitable for these applications, please refer to the Fleetfit range.
Tehnilised andmed
Fitting Type
Elbow
Bore Size
6mm
Operating Pressure Max
10bar
Thread Size
G1/8
Product Range
Pneufit C
Pneumatic Connection
G1/8
External Diameter
13mm
Tubing Outer Diameter
6mm
Fitting Material
PBT (Polybutylene Terephthalate)
Tehnilised dokumendid (1)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:South Korea
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:South Korea
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:74122000
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Pole kohaldatav
Vastab RoHS-i ftalaatide nõuetele:Pole kohaldatav
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.02
