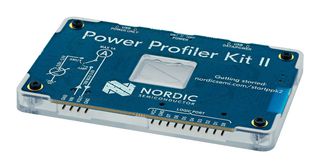

NRF-PPK2

The Power Profiler Kit II (PPK2) is an easy-to-use tool for current measurements and power consumption optimization of embedded solutions. The PPK2 connectors can be connected to any Nordic DK or custom board as a standalone unit, i.e. there are no requirements for additional kits or debuggers. The PPK2 supports both a source mode and an ampere meter mode.

• 200nA to 1A current measurement range with a resolution that varies between 100nA and 1mA
• Source mode and ampere meter mode
• Source mode includes built-in programmable regulator with a 0.8V to 5V output range and 1A current
• 100Ksps sampling rate (10 x greater than previous generation)
• Standalone unit
• 8 digital inputs for low-end logic analyser support
• Measure instantaneous and average current on all Nordic DKs, in addition to custom boards
• Supported through nRF connect for desktop’s power profiler app
• Export measurement data for post processing

Sisukord

Power Profiler Kit II board, 4-pin current measurement cable, 10-pin logic port cable.

Hoiatused

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
