MCPIN-T18L-001

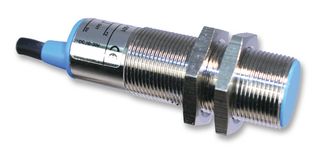

Inductive Proximity Sensor, Long Housing, M18, 4 mm, NPN, 10 V to 30 V, Pre-wired
Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaMULTICOMP
Tootja toote nrMCPIN-T18L-001
Tellimiskood2218040
TootevalikMCPIN Series
Tehniliste andmete leht
40 Laos
100 Varusid saab nüüd reserveerida
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 16,550 € |
| 10+ | 15,170 € |
| 25+ | 14,010 € |
| 50+ | 13,010 € |
| 100+ | 12,140 € |
| 200+ | 11,380 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
16,55 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaMULTICOMP
Tootja toote nrMCPIN-T18L-001
Tellimiskood2218040
TootevalikMCPIN Series
Tehniliste andmete leht
Sensing Range Max4mm
Sensor TypeInductive Proximity Sensor
Operating Temperature Max70°C
Sensing Distance Min-
Thread Size - MetricM18
Sensing Distance Max4mm
Sensor Output TypeNPN-NO
Supply Voltage DC Min10V
Sensing Distance Nom-
Supply Voltage DC Max30V
Supply Voltage Min10VDC
Supply Voltage Max30VDC
Sensor Output Type3-Wire, NPN, NO
Sensor Case / PackageCylindrical M18 Thread
Sensor TerminalsCable
Sensor Body MaterialBrass
IP RatingIP67
Operating Temperature Min-20°C
Product RangeMCPIN Series
Toote ülevaade
The MCPIN-T18L-001 is a cylindrical Inductive Sensor with 3-wire and M18 long housing. This NPN NO output shielded sensor features LED operation indication lamp and ferrous standard sensing object.
- Over-current protection
- IP67 Protection rating
- ±200mA Current output
- -20 to 70°C Ambient temperature range
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Rakendused
Sensing & Instrumentation
Tehnilised andmed
Sensing Range Max
4mm
Operating Temperature Max
70°C
Thread Size - Metric
M18
Sensor Output Type
NPN-NO
Sensing Distance Nom
-
Supply Voltage Min
10VDC
Sensor Output Type
3-Wire, NPN, NO
Sensor Terminals
Cable
IP Rating
IP67
Product Range
MCPIN Series
Sensor Type
Inductive Proximity Sensor
Sensing Distance Min
-
Sensing Distance Max
4mm
Supply Voltage DC Min
10V
Supply Voltage DC Max
30V
Supply Voltage Max
30VDC
Sensor Case / Package
Cylindrical M18 Thread
Sensor Body Material
Brass
Operating Temperature Min
-20°C
