THEM-CLBX(460-470)
High Brightness LED, ESD, Blue, 470 nm, 155 °, 25 lm, 350 mA
Pilt on illustreeriv. Lugege toote kirjeldust.
1 305 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 3,190 € |
| 10+ | 2,790 € |
| 25+ | 2,230 € |
| 50+ | 1,860 € |
| 100+ | 1,720 € |
| 500+ | 1,590 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
3,19 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaMULTICOMP PRO
Tootja toote nrTHEM-CLBX(460-470)
Tellimiskood2627656
Tehniliste andmete leht
Product Range-
LED ColourBlue
Wavelength Typ470nm
Viewing Angle155°
Luminous Flux @ Test25lm
Forward Current If Max350mA
Forward Current @ Test350mA
Forward Voltage @ Test3.2V
Luminous Intensity @ Test-
Power Dissipation Pd1W
Automotive Qualification Standard-
SVHCNo SVHC (21-Jan-2025)
Toote ülevaade

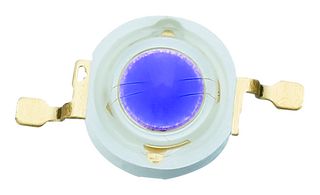

The THEM-CLBX(460-470) from Multicomp Pro is an blue colour flux LED. This compact design instant light, fully dimmable LED is used in reading lights, portable light, orientation, entertainment, garden, security light, ceiling light, architectural lighting, general lighting and jewel display illumination.
- Long operating life
- Energy efficiency
- Low thermal resistance
- No UV, superior ESD protection
- 155° viewing angle (optical characteristics), lambertian beam pattern (flux characteristics)
- Typical luminous intensity is 25lm at 350mA (flux characteristics)
- Peak wavelength λp is 470nm (max) at optical characteristics 350mA
- DC forward current of 350mA
- Peak pulse current is 500mA
- Operating temperature range from -30°C to +100°C
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Rakendused
Signalling
Hoiatused
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Tehnilised andmed
Product Range
-
Wavelength Typ
470nm
Luminous Flux @ Test
25lm
Forward Current @ Test
350mA
Luminous Intensity @ Test
-
Automotive Qualification Standard
-
LED Colour
Blue
Viewing Angle
155°
Forward Current If Max
350mA
Forward Voltage @ Test
3.2V
Power Dissipation Pd
1W
SVHC
No SVHC (21-Jan-2025)
Tehnilised dokumendid (1)
Seotud tooted
Leiti 3 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Taiwan
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Taiwan
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85414100
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (21-Jan-2025)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.0023
