R13-24B-05-BB
Pushbutton Switch, R13-24, 7.2 mm, SPST-NC, (Off)-On, Round, Black

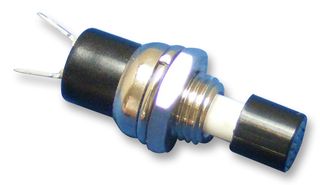

Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaMULTICOMP PRO
Tootja toote nrR13-24B-05-BB
Tellimiskood1634688
TootevalikR13-24
Tehniliste andmete leht
2 150 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 1,730 € |
| 12+ | 1,520 € |
| 100+ | 1,380 € |
| 500+ | 1,170 € |
| 1000+ | 1,110 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
1,73 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaMULTICOMP PRO
Tootja toote nrR13-24B-05-BB
Tellimiskood1634688
TootevalikR13-24
Tehniliste andmete leht
Pushbutton Switch TypeStandard
Product RangeR13-24
Panel Cutout Diameter7.2mm
Contact ConfigurationSPST-NC
Contact Voltage AC Nom125V
Switch Operation(Off)-On
Contact Current Max3A
Pushbutton Actuator StyleRound
Actuator / Cap ColourBlack
Contact Current AC Max3A
Contact Voltage VAC125V
Contact Current DC Max-
Contact Voltage VDC-
IP Rating-
Switch MountingPanel Mount
Switch TerminalsSolder Lug
Illumination ColourNon Illuminated
Panel Cutout (H x W)-
Toote ülevaade
The R13-24B-05-BB is a single-pole single-throw (SPST) momentary Pushbutton Switch with solder terminals, ON-OFF function and NC contact. The R13-24 series has black button and black PBT housing.
- Two pin momentary action
- Current rating of 3A at 125VAC and 1.5A at 250VAC
- Insulation resistance of 100Mohm min at DC 500V
- Dielectric strength of 1000VAC
- Black ABS button with Ø6 x 5.6mm size and black PBT housing
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Rakendused
Industrial
Tehnilised andmed
Pushbutton Switch Type
Standard
Panel Cutout Diameter
7.2mm
Contact Voltage AC Nom
125V
Contact Current Max
3A
Actuator / Cap Colour
Black
Contact Voltage VAC
125V
Contact Voltage VDC
-
Switch Mounting
Panel Mount
Illumination Colour
Non Illuminated
Product Range
R13-24
Contact Configuration
SPST-NC
Switch Operation
(Off)-On
Pushbutton Actuator Style
Round
Contact Current AC Max
3A
Contact Current DC Max
-
IP Rating
-
Switch Terminals
Solder Lug
Panel Cutout (H x W)
-
Tehnilised dokumendid (1)
Alternatiivid tootele R13-24B-05-BB
Leiti 1 toodet
Seotud tooted
Leiti 1 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Taiwan
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Taiwan
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.003478
