MP750288

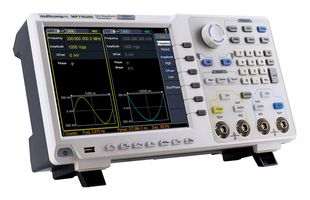

The MP750288 from Multicomp Pro is an 80MHz, 2-channel arbitrary waveform generator, featuring max 1.25GS/s sample rates, 1?Hz frequency resolution, 14-bits vertical resolution and max 1M arbitrary waveform length.

• 8" (800 x 600 pixels) multi-touch screen LCD display
• High-accuracy frequency counter integrated, supporting range of 100 to 200MHz and 7-digit resolution
• Frequency counter function: period, +width, -width, +duty, -duty
• 80MHz max frequency output
• Comprehensive waveform output: 6 basic waveforms and 152 built-in arbitrary waveforms
• Modulation functions: AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, Sweep and Burst
• SCPI and LabVIEW supported
• USB host, USB device and LAN communication interfaces
• Dimensions: 340 x 177 x 90mm (WxHxD)
• Device weight: 2.5kg
• UK type G and Euro type E / F (Schuko) mains plugs
• Supplied with UK Type G & Euro Type E/F Power Cord

Sisukord

Arbitrary function generator, EU & UK mains cords, CD-ROM, Quick-guide, USB cable and Q9 cable.

Märkused

Standard certified calibration service available for this product. Visit our calibration page for more details.
