MP-11-55/70/E121B14H22K

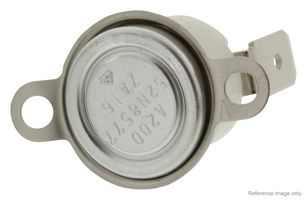

MP-11-55/70/E121B14H22K is a snap-action thermostat switch used to regulate the temperature of a system or environment by sensing temperature changes of 70°C and activating or deactivating heating or cooling systems accordingly. It is normally closed and operates in the range of 125V to 250V at 16A. Thermostat switches are commonly used in heating, ventilation, air conditioning (HVAC) systems, appliances, and various industrial and commercial applications to maintain desired temperature levels.

• Automatic reset thermostat
• Housing type, phenolic height 12mm, phenolic housing and shield material
• 85°C (maximum off temperature), 100°C (maximum on temperature)
• 15/16amps rated current
• Terminal selection: 90° angle and nickel plated brass, 0° angle and nickel plated brass (6.3x0.8mm)
• Switch type is close on rise (normally open) (N/O)
• Temperature is 70°C ±3°C set, 55°C ±5°C reset

Rakendused

Temperature Controllers, Industrial, Automation & Process Control, HVAC

Sisukord

x1 Thermostat switch.

Märkused

Secure flange mounting to surfaces.
