3901-2165
Connector Housing, Pull Tabs, UL 94V-0, Mini-Fit Jr. 5557, Receptacle, 16 Ways, 4.2 mm
Vajate rohkem?
| Kogus | |
|---|---|
| 1+ | 0,880 € |
| 10+ | 0,683 € |
| 50+ | 0,560 € |
| 100+ | 0,513 € |
| 500+ | 0,503 € |
| 1000+ | 0,492 € |
Tooteteave
Toote ülevaade

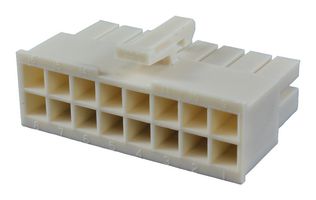

The 3901-2165 is a 16-circuit 2-row Mini-Fit Jr.™ receptacle housing, used with 5556 series Mini-Fit® female crimp terminals, 45750 series Mini-Fit® Plus HCS crimp terminal. This 5557 series crimp housing is made of nylon, mates with 5559 series dual row, 5566 series vertical with pegs, 5566 series vertical without pegs, 5569 series right angle dual row with flanges, 5569 series right angle dual row with pegs, 43810, 44068, 44281, 87427, 42404, 42440 series, suitable for power, wire-to-board and wire-to-wire applications.
- Natural colour
- UL94V-0 flammability rating
- Current rating per contact is 13A
- Temperature range from -40 to 105°C
Rakendused
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical, Communications & Networking
Tehnilised andmed
Mini-Fit Jr. 5557
16Ways
Molex Mini-Fit Jr. 5556 & Mini-Fit Plus HCS 45750 Series Socket Contacts
Receptacle
4.2mm
No SVHC (21-Jan-2025)
Alternatiivid tootele 3901-2165
Leiti 8 toodet
Seadusandlus ja keskkonnateave
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
RoHS
RoHS
Toote vastavussertifikaat
