293-821-30

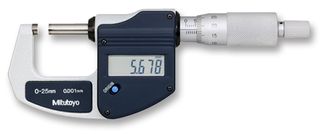

Micrometer, 25 mm Measuring Range, 0.001mm Graduations, Digital, LCD Display
Pilt on illustreeriv. Lugege toote kirjeldust.
Ei ladustata enam
Tooteteave
TootjaMITUTOYO
Tootja toote nr293-821-30
Tellimiskood1276593
Tehniliste andmete leht
Measuring Range Max25mm
Graduations0.001mm
Accuracy-
No. of Anvils-
Product Range-
Toote ülevaade
293-821-30 is a digital micrometer. It is a basic, cost-effective digital micrometer. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.
- Digital, 0 to 25mm range, 0.001mm digital step, ±2µm maximum permissible error J MPE
- Accuracy is ±2µm, 0.3µm flatness, 1µm parallelism
- LCD, character height 7.5mm display, ø6.35mm, spindle pitch 0.5mm measuring spindle
- Thimble and sleeve satin chrome finish, ø18mm scale
- 1 battery SR-44 power supply, Approx. 2.4 years battery life
- Auto power OFF after 20 min. non use, function lock
Sisukord
Digital micrometer, Key, 1 battery, Certificate of inspection.
Tehnilised andmed
Measuring Range Max
25mm
Accuracy
-
Product Range
-
Graduations
0.001mm
No. of Anvils
-
Tehnilised dokumendid (2)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Japan
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Japan
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:90173000
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Vajab kinnitamist
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.44
