MC20805A6W-GPTLY-V2
Alphanumeric LCD, 8 x 2, 5V, English, Japanese, Transflective
Pilt on illustreeriv. Lugege toote kirjeldust.
14 Laos
45 Varusid saab nüüd reserveerida
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 11,840 € |
| 5+ | 10,850 € |
| 10+ | 10,420 € |
| 50+ | 9,300 € |
| 100+ | 8,680 € |
| 250+ | 8,510 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
11,84 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaMIDAS DISPLAYS
Tootja toote nrMC20805A6W-GPTLY-V2
Tellimiskood2674216
Tehniliste andmete leht
Character Count x Line8 x 2
Display Appearance-
Logic Voltage5V
Interface Type-
Font SetEnglish, Japanese
Display ModeTransflective
Character Size5.56mm
LCD Display TypeSTN
Module Size58mm x 32mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourYellow Green
Product Range-
SVHCNo SVHC (27-Jun-2024)
Toote ülevaade

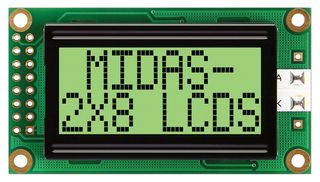

The MC20805A6W-GPTLY-V2 from Midas is a chip on board LCD module. The overall size of module is 58mm x 32mm x 13.5mm (W x H x D), character size is 2.96mm x 5.56mm (W x H), character pitch is 0.59mm x 0.36mm (W x H).
- Typical input voltage is 5V
- Supply current is 1.3mA at VDD = 5V
- 8 character number per line & 2 character line
- Gray colour STN LCD panel
- Array type LED backlight (yellow-green colour)
- Positive transflective polarizer, bottom viewing direction is 6:0
- Operating temperature range from -20°C to 70°C
- SUNPLUS controller
- 1/16 display duty, 1/5 driving bias
- Display duty 1/16, Driving bias 1/5
- Yellow/green LED backlight
- Preferred view angle - 6 o'clock
- -20 to +70°C wide operating temperature range
- 16 way through hole DIL (side, left, 2x8) connection, 2.54mm pitch
Rakendused
Imaging, Video & Vision
Tehnilised andmed
Character Count x Line
8 x 2
Logic Voltage
5V
Font Set
English, Japanese
Character Size
5.56mm
Module Size
58mm x 32mm
Operating Temperature Max
70°C
Backlighting Colour
Yellow Green
SVHC
No SVHC (27-Jun-2024)
Display Appearance
-
Interface Type
-
Display Mode
Transflective
LCD Display Type
STN
Operating Temperature Min
-20°C
Display Construction
COB
Product Range
-
Tehnilised dokumendid (2)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (27-Jun-2024)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.04
