MC192032A6WC-SPTLY
Graphic LCD, 192 x 32, White on Blue, 3V to 5V, Parallel, English, Chinese, Transflective

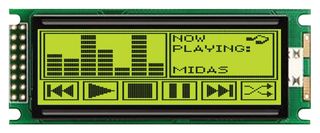

Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaMIDAS DISPLAYS
Tootja toote nrMC192032A6WC-SPTLY
Tellimiskood2063227
TootevalikMC192032A6WC
Tehniliste andmete leht
Saadaval tellimiseks
Tootja standardne tarneaeg: 18 nädal(at)
Teavitage mind, kui toode on uuesti laos
| Kogus | |
|---|---|
| 1+ | 35,260 € |
| 5+ | 32,440 € |
| 10+ | 28,960 € |
| 50+ | 27,030 € |
| 100+ | 26,490 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
35,26 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaMIDAS DISPLAYS
Tootja toote nrMC192032A6WC-SPTLY
Tellimiskood2063227
TootevalikMC192032A6WC
Tehniliste andmete leht
Resolution192 x 32
Display AppearanceWhite on Blue
Logic Voltage3V to 5V
Interface TypeParallel
Font SetEnglish, Chinese
Display ModeTransflective
LCD Display TypeSTN
Module Size116mm x 37mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourYellow / Green LED
Product RangeMC192032A6WC
SVHCNo SVHC (27-Jun-2024)
Toote ülevaade
- Graphic LCD module
- Resolution 192x32 dots (192 x 32)
- Positive mode yellow/green STN material
- Appearance blue/black dots on yellow/green background
- Transflective technology, for both outdoor and indoor applications
- Chip on Board construction (COB) for easy mounting and connection
- Onboard ST7920 Controller with standard parallel interface
- Controller provides onboard fonts for English and Simplified Chinese characters
- 5V logic supply
- 1/32 display duty
- Yellow/green LED backlight, via pins A, K
- Preferred 6 o'clock viewing angle
- Wide operating temperature range -20 to +70oC
- 16-way through-hole DIL connection (side, left, 2x8) with 2.54mm pitch
- Same foot print as industry standard 20 x 2 alphanumeric LCD module
- Overall dimensions - 116.0 x 37.0 x 13.9mm
- Viewing area - 85.0 x 18.6mm
- Dot size - 0.46 x 0.38mm
Hoiatused
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Tehnilised andmed
Resolution
192 x 32
Logic Voltage
3V to 5V
Font Set
English, Chinese
LCD Display Type
STN
Operating Temperature Min
-20°C
Display Construction
COB
Product Range
MC192032A6WC
Display Appearance
White on Blue
Interface Type
Parallel
Display Mode
Transflective
Module Size
116mm x 37mm
Operating Temperature Max
70°C
Backlighting Colour
Yellow / Green LED
SVHC
No SVHC (27-Jun-2024)
Tehnilised dokumendid (1)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Taiwan
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Taiwan
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (27-Jun-2024)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.055
