MCCOG21605D6W-SPTLYI
Alphanumeric LCD, 16 x 2, Black on Yellow / Green, 3V to 5V, I2C, English, Japanese, Transflective

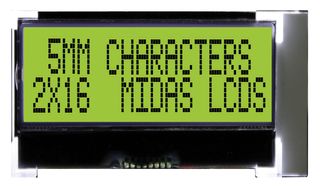

Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaMIDAS DISPLAYS
Tootja toote nrMCCOG21605D6W-SPTLYI
Tellimiskood2063205
TootevalikMCCOG21605D6W
Tehniliste andmete leht
Ei ladustata enam
Tooteteave
TootjaMIDAS DISPLAYS
Tootja toote nrMCCOG21605D6W-SPTLYI
Tellimiskood2063205
TootevalikMCCOG21605D6W
Tehniliste andmete leht
Character Size4.67mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Product RangeMCCOG21605D6W
Toote ülevaade
- Alphanumeric / character LCD module
- 2 lines of 16 characters - 2 x 16 also referred to as 16 x 2
- Positive mode yellow/green STN material
- Appearance - blue/black characters on a yellow/green background
- Transflective technology, generally for both indoor and outdoor applications
- Chip on glass construction (COG)
- On glass controller ST7032i or equivalent
- English/Japanese font sets
- 3V to 5V logic supply, I2C interface
- Display duty 1/16, Driving bias 1/5
- Yellow/green LED backlight
- Preferred view angle - 6 o'clock
- -20 to +70°C wide operating temperature range
- 8 pin SIL (bottom middle) connection, 1.27mm pitch
- Overall max dimensions - 62.8 x 23.0 x 6.3mm
- Viewing area - 51.5 x 12.2mm
- 5mm character (actual dimension 2.60 x 4.67mm)
Tehnilised andmed
Character Size
4.67mm
Operating Temperature Max
70°C
Operating Temperature Min
-20°C
Product Range
MCCOG21605D6W
Tehnilised dokumendid (2)
Seotud tooted
Leiti 1 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Taiwan
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Taiwan
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.012701
