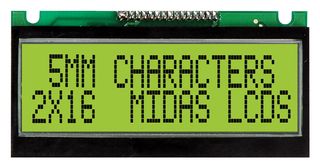

MC21605F6WE-SPR

• Alphanumeric / character LCD module
• 2 lines of 16 characters - 2 x 16 also referred to as 16 x 2
• Positive mode yellow/green STN material
• Appearance - blue/black characters on yellow/green background
• Reflective technology, generally for strong ambient light and low power applications
• Chip on board construction (COB) for easy mounting
• On board controller SPLC780 or equivalent (HD44780 derivative)
• English/Japanese font sets
• 5V logic supply, standard parallel interface
• Display duty 1/16, Driving bias 1/5
• No backlight
• Preferred view angle - 6 o'clock
• -20 to +70°C wide operating temperature range
• 16 way through hole SIL (top middle) connection, 2.54mm pitch
• Overall max dimensions - 59.0 x 29.3 x 5.5mm
• Viewing area - 52.0 x 15.0mm
• 5mm character (actual dimension 2.45 x 4.67mm)

Rakendused

Industrial, Imaging, Video & Vision
