MC10808A6W-SPR-V2
Alphanumeric LCD, 8 x 1, Black on Yellow / Green, 5V, Parallel, English, Japanese, Reflective

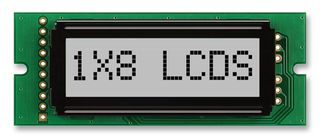

Pilt on illustreeriv. Lugege toote kirjeldust.
50 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
Saadaval, kuni laos jätkub
| Kogus | |
|---|---|
| 1+ | 9,050 € |
| 5+ | 7,870 € |
| 10+ | 7,540 € |
| 50+ | 6,270 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
9,05 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaMIDAS DISPLAYS
Tootja toote nrMC10808A6W-SPR-V2
Tellimiskood2675573
Tehniliste andmete leht
Character Count x Line8 x 1
Display AppearanceBlack on Yellow / Green
Logic Voltage5V
Interface TypeParallel
Font SetEnglish, Japanese
Display ModeReflective
Character Size7.71mm
LCD Display TypeSTN
Module Size69mm x 27mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourNo Backlight
Product Range-
SVHCNo SVHC (14-Jun-2023)
Toote ülevaade
The MC10808A6W-SPR-V2 from Midas is a chip on board LCD alphanumeric module. The overall size of module is 69mm x 27mm x 8mm (W x H x D), character size is 4.2mm x 7.71mm (W x H), character pitch is 1mm (W).
- Input voltage range from 4.7V to 5.5V
- Supply current is 1.3mA at Vdd = 5V
- 8 character number per line & 1 character line
- Character height is 8mm
- Yellow/green reflective STN
- 6 "o" clock viewing direction
- Sunplus controller
- Operating temperature range from -20°C to 70°C
- 5V logic supply, standard parallel interface
- Display duty 1/8, Driving bias 1/4
- No backlight
- Preferred view angle - 6 o'clock
- -20 to +70°C wide operating temperature range
- 10 way though hole SIL (side, left) connection, 2.54mm pitch
Rakendused
Imaging, Video & Vision
Tehnilised andmed
Character Count x Line
8 x 1
Logic Voltage
5V
Font Set
English, Japanese
Character Size
7.71mm
Module Size
69mm x 27mm
Operating Temperature Max
70°C
Backlighting Colour
No Backlight
SVHC
No SVHC (14-Jun-2023)
Display Appearance
Black on Yellow / Green
Interface Type
Parallel
Display Mode
Reflective
LCD Display Type
STN
Operating Temperature Min
-20°C
Display Construction
COB
Product Range
-
Tehnilised dokumendid (2)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (14-Jun-2023)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.04
