EV41C56A
Evaluation Kit, Curiosity Nano+ Touch, PIC32CM5164LS00048, PIC32CM Family, ARM Cortex-M23, 32bit
Pilt on illustreeriv. Lugege toote kirjeldust.
9 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 33,200 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
33,20 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaMICROCHIP
Tootja toote nrEV41C56A
Tellimiskood4691124
Silicon ManufacturerMicrochip
No. of Bits32bit
Silicon Family NamePIC32CM
Core ArchitectureARM
Core Sub-ArchitectureCortex-M23
Silicon Core NumberPIC32CM5164LS00048
Kit ContentsCuriosity Nano+ Touch Evaluation Board PIC32CM5164LS00048
Product Range-
SVHCNo SVHC (21-Jan-2025)
Toote ülevaade

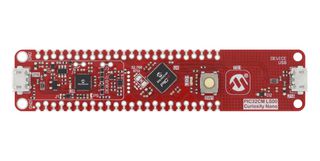

EV41C56A is a PIC32CM LS00 curiosity nano+ touch evaluation kit. This is a hardware platform to evaluate the PIC32CM5164LS00048 microcontroller. This board is supported by MPLAB Integrated tools development environment and MPLAB Harmony. The PIC32CM LS00 curiosity nano+ touch evaluation kit comes pre-programmed with a stand-alone demonstration application and uses power provided by its micro-USB connections. The evaluation kit can be used as a stand-alone discovery element and may also be combined with expansion elements for quick prototyping.
- PIC32CM5164LS00048 MCU, 1 user application yellow LED, 1 user application mechanical button
- 1 user application touch button, USB for device control (Can be used for powering the board)
- USB for debugger (can be used for powering board, must be used to program or debug board)
- On-board nano debugger (nEDBG): board identification in MPLAB X IDE, 1 green power/status LED
- Programming and debugging, CDC virtual COM port, 1 logic analyser DGI GPIO
- Adjustable target voltage: MIC5353 LDO regulator controlled by the on-board debugger
- 1.7V to 3.6V output voltage
- 500mA maximum output current (limited by ambient temperature and output voltage)
Tehnilised andmed
Silicon Manufacturer
Microchip
Silicon Family Name
PIC32CM
Core Sub-Architecture
Cortex-M23
Kit Contents
Curiosity Nano+ Touch Evaluation Board PIC32CM5164LS00048
SVHC
No SVHC (21-Jan-2025)
No. of Bits
32bit
Core Architecture
ARM
Silicon Core Number
PIC32CM5164LS00048
Product Range
-
