DM330015
Starter Kit, Motor Controller, mTouch Sensing

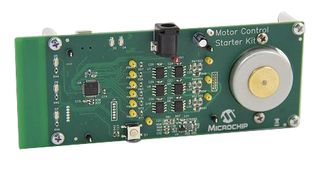

Pilt on illustreeriv. Lugege toote kirjeldust.
Ei toodeta enam
Tooteteave
TootjaMICROCHIP
Tootja toote nrDM330015
Tellimiskood1961651
Tehniliste andmete leht
Silicon ManufacturerMicrochip
Silicon Core NumberdsPIC33F
Kit Application TypePower Management - Motor Control
Application Sub TypeBLDC Motor
Core ArchitecturedsPIC
Core Sub-ArchitecturedsPIC33
Silicon Family NamedsPIC33FJxxMCxxx
Kit ContentsBoard, Motor, Power Supply, USB Cable
Product Range-
SVHCNo SVHC (15-Jan-2018)
Toote ülevaade
The DM330015 is a motor control starter kit with mTouch sensing a complete hardware and software tool suite for evaluating Microchips ultra low cost motor control family dsPIC DSCs. It contains a single board with BLDC motor, capacitive touch sliders and a built in debugger.
- DsPIC33FJ16MC102 Very low cost 16bit motor control DSC
- On board in circuit programming /debug via USB
- On board 3phase BLDC motor
- 15V, 2.6A on board drive circuit with pads for user supplied motor
- Capacitive touch slider for speed control with LED indicators
- Compact design 2" x 5" board
- Powered via 9V power supply
- Sensorless BEMF majority detect control
Rakendused
Motor Drive & Control, Embedded Design & Development
Sisukord
Motor Control Starter Kit Board, BLDC motor, 9V power supply, USB cable.
Märkused
90 Day Warranty only. After Expiration of Warranty returns must be processed via Microchip.
Tehnilised andmed
Silicon Manufacturer
Microchip
Kit Application Type
Power Management - Motor Control
Core Architecture
dsPIC
Silicon Family Name
dsPIC33FJxxMCxxx
Product Range
-
Silicon Core Number
dsPIC33F
Application Sub Type
BLDC Motor
Core Sub-Architecture
dsPIC33
Kit Contents
Board, Motor, Power Supply, USB Cable
SVHC
No SVHC (15-Jan-2018)
Tehnilised dokumendid (4)
Seotud tooted
Leiti 2 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85423190
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Vajab kinnitamist
Väga ohtlik aine:No SVHC (15-Jan-2018)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.371492
