MICROCHIP ATMEGA256RFR2-XSTK
Development Kit, Xplained Pro, ATMEGA256RFR2 MCU, Mechanical Reset Button, User Push Button
- Tootja:
- MICROCHIP MICROCHIP
- Tootja toote nr:
- ATMEGA256RFR2-XSTK
- Tellimiskood:
- 2295526
- Tehniliste andmete leht:
- ATMEGA256RFR2-XSTK Andmeleht
- ECAD / MCAD
-
Tooteteave
Kas te soovite näha sarnaseid tooteid? Valige lihtsalt allpool vajalikud omadused ja klõpsake nupule ×
- :
- Atmel
- :
- 8bit
- :
- ATmega
- :
- ATmega
- :
- AVR RISC
- :
- ATmega256RFR2
- :
- Eval Board ATMEGA256RFR2, RCB256RFR2 Radio Controller, RCB Sensor Terminal, Key Remote Control Board
- :
- -
Tehnilised dokumendid (2)
Toote ülevaade

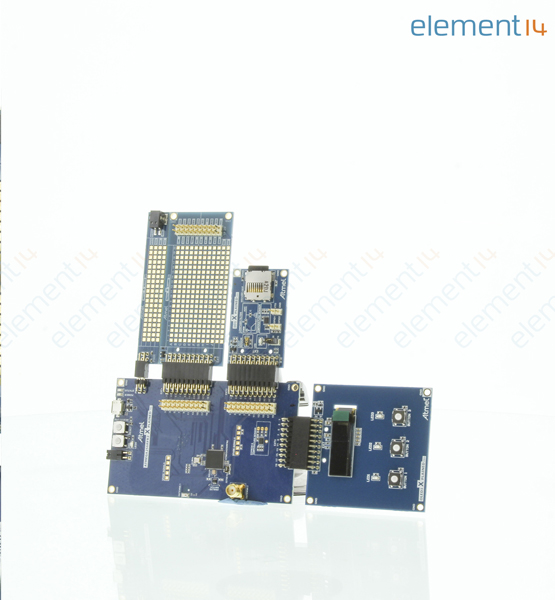

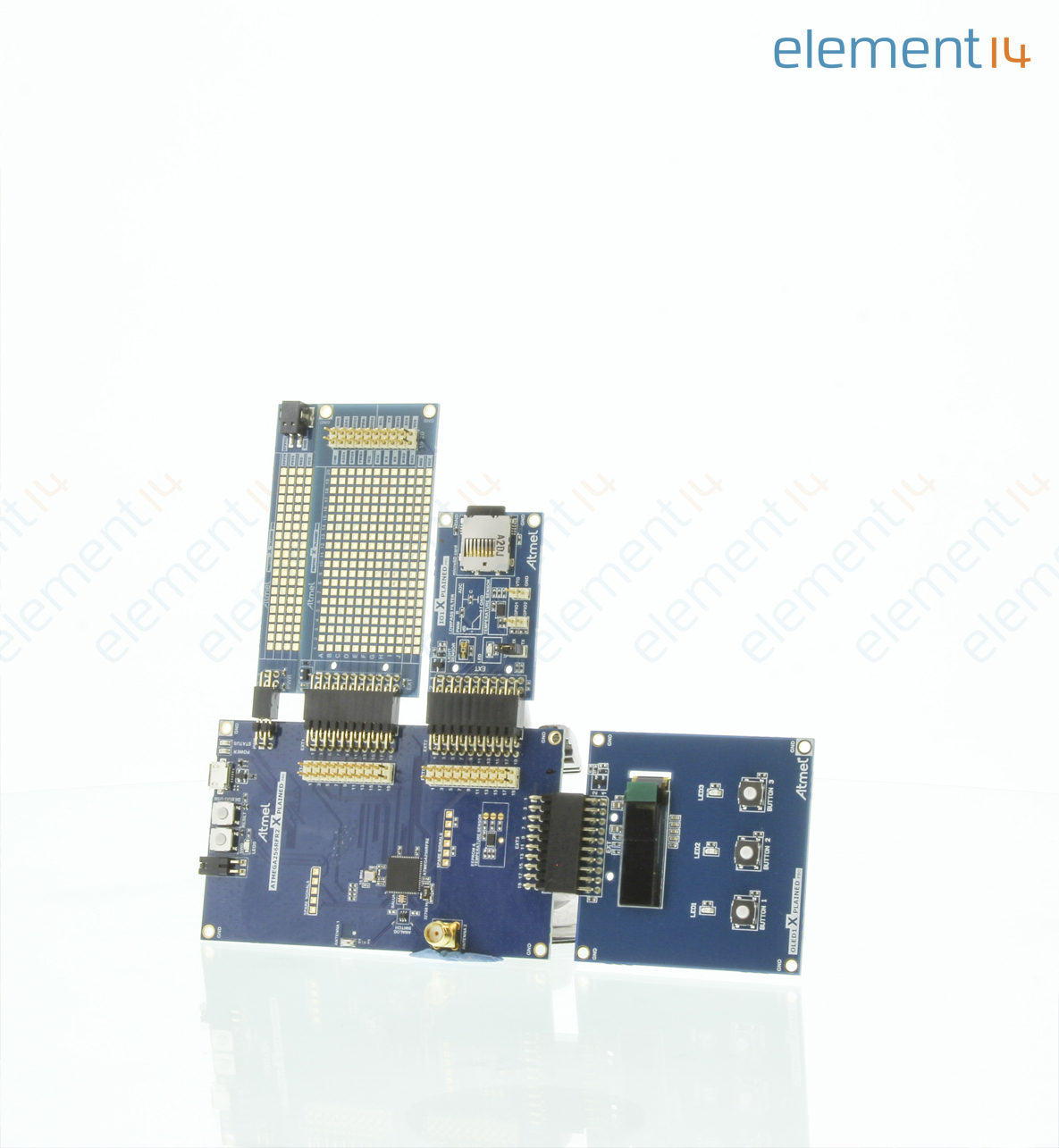

ATMEGA256RFR2-XSTK Xplained Pro starter kit is ideal for evaluation and prototyping with the ATmega256RFR2 microcontroller. Supported by the Microchip Studio integrated development platform, the kit provides easy access to the features of the ATmega256RFR2 and explains how to integrate the device in a customer design. ATmega256RFR2 is a low power CMOS 8bit MCU based on the AVR enhanced RISC architecture combined with a high data rate transceiver for the 2.4GHz ISM band. The I/O1 Xplained Pro provides a light sensor, temperature sensor, and microSD card. The OLED1 Xplained Pro provides a 128 x 32 OLED display, 3 LEDs and 3 push buttons. The PROTO1 Xplained Pro provides easy prototyping on the Xplained Pro Platform. The Xplained Pro MCU series evaluation kits include an on board Embedded Debugger, and no external tools are necessary to program or debug the ATmega256RFR2.
- ATmega256RFR2 microcontroller
- One mechanical reset button
- One mechanical user pushbutton (wake up, boot loader entry or general purpose)
- One user yellow LED
- 32.768KHz crystal and 16MHz crystal
- 5 Xplained Pro extension headers (2 headers are duplicates)
- Antenna diversity includes ceramic RF antenna and SMA connector for external antenna
- Temperature sensor
- Embedded debugger
- USB powered
Sisukord
MCU board, I/O1 Xplained Pro, OLED1 Xplained Pro, and PROTO1 Xplained Pro extension boards, 2 micro USB cables.
